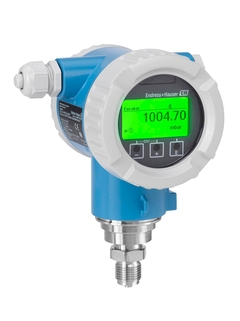

Cerabar PMP71B - pressure transmitter

Cerabar PMP71B - pressure transmitter

Smart pressure transmitter - its health can be verified without process interruption

PMP71B
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-
Cerabar PMP71B - pressure transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser
Cerabar PMP71B - pressure transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser
Cerabar PMP71B - pressure transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser
Cerabar PMP71B - pressure transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser

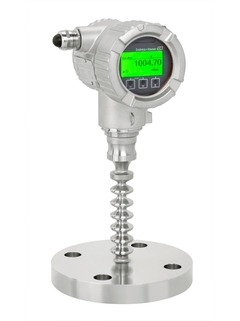

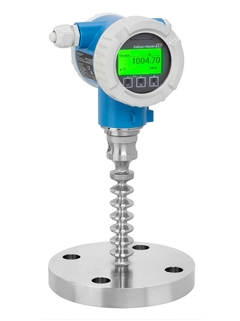

With temperature decoupler

Cerabar PMP71B - pressure transmitter
  • F
  • L
  • E
  • X
©Endress+Hauser

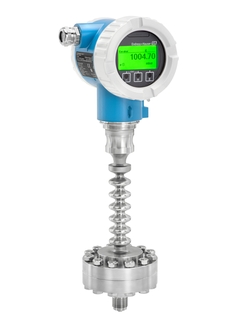

With temperature decoupler and stainless steel housing

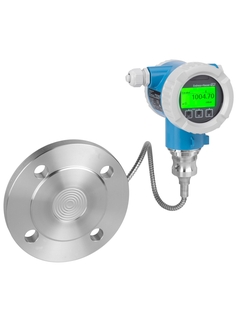

Cerabar PMP71B - pressure transmitter, Diaphragm Seal, display, thread flush mounted
  • F
  • L
  • E
  • X
©Endress+Hauser

With thread flush

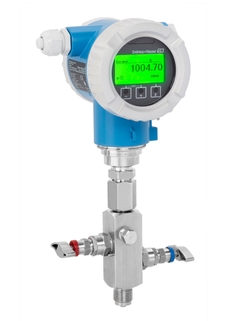

Cerabar PMP71B - pressure transmitter, Separator threaded, display, diaphragm seal
  • F
  • L
  • E
  • X
©Endress+Hauser

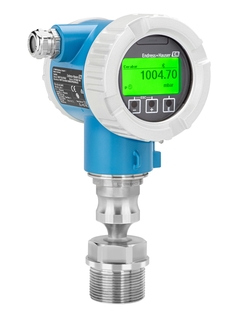

With threaded separator

Kratke specifikacije

  • Accuracy

    Standard:
    up to 0.05 %
    Platinum:
    up to 0.025 %

  • Process temperature

    Standard:
    -40°C…+125°C
    (-40°F…+257°F)
    Diaphragm seal:
    -40°C...+400°C
    (-40°F...+752°F)

  • Pressure measuring range

    400 mbar...700 bar
    (1.5 psi...10,500 psi)

  • Main wetted parts

    316L, AlloyC,
    Tantal, Monel,
    PTFE, Gold

  • Material process membrane

    316L, AlloyC,
    Tantal, Monel,
    PTFE,
    Gold

  • Measuring cell

    400 mbar...700 bar
    (6 psi...10,500 psi)

Područje primjene

This transmitter belongs to the new Cerabar generation. The transmitter is robust and can be remotely controlled via app on a mobile device using a secure Bluetooth connection.
The software is designed to simplify the handling. Intuitive wizards guide the user through setup, proof tests and verification of the device.
Heartbeat Technology offers verification and monitoring functions to detect unwanted anomalies e.g. changes in loop characteristics.

  • Pressure measuring range: up to 700 bar (10500 psi)

  • Process temperatures up to 400°C (752 °F) with diaphragm seal

  • Accuracy: up to +/- 0.025%

Prednosti

  • With Heartbeat Technology you are able to verify the health of the device while the process is running.

  • Simple indication of device status - display changes from green to red when diagnostic messages occur

  • Reduce systematic failures - error free SIL commissioning and instrument guided proof testing

  • Wireless control of the device in the process area with the SmartBlue App

Videozapisi

  • Verification of a pressure transmitter within 3 minutes - while the process is running? Learn more in this video.

Extended odabir

  • Vrhunski proizvodi

  • Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

FLEX: Extended ©Endress+Hauser

  • Jednostavni proizvodi

  • Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

  • Standardni proizvodi

  • Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

  • Vrhunski proizvodi

  • Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

  • Specijalizirani proizvodi

  • Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

FLEX odabir Tehnička izvrsnost Jednostavnost
  • F
  • L
  • E
  • X

Fundamental odabir

Udovoljite svojim osnovnim potrebama u mjernju

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Lean odabir

Jednostavno upravljajte svojim osnovnim procesima

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Extended odabir

Optimizirajte svoje procese s inovativnim tehnologijama

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Xpert odabir

Ovladajte svojim najizazovnijim aplikacijama

Tehnička izvrsnost
Jednostavnost

Promjenjivo
Loading alternative products

Prethodnik

Uspješne priče

  • Pressure measurement in the steam reformer operates reliably and easily at Messer Industriegase. Pressure measurement in the steam reformer operates reliably and easily at Messer Industriegase.

    High plant availability in hydrogen production

    Messer produces hydrogen in a steam reformer. The facility has a large number of protection and safety devices where pressure values play an important role.

  • In Returkraft’s large incinerator, the pressure conditions must be monitored continuously. In Returkraft’s large incinerator, the pressure conditions must be monitored continuously.

    Time saved, safety increased

    Employees of Returkraft regularly have to fulfill and document all requirements of the SIL measuring points in the plant.

  • CNG compressor model with electric motor CNG compressor model with electric motor

    Fit for purpose instrumentation for CNG compressors

    The Egyptian government is working to replace liquid fuels with natural gas. To achieve this they targeted increasing the number of CNG stations in their country from 306 to 1000 by the end of 2021.
