Vibronic point level detection

Jednostavni proizvodi
Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

Što je FLEX?

Standardni proizvodi
Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

Što je FLEX?

Vrhunski proizvodi
Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

Što je FLEX?

Specijalizirani proizvodi
Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

Što je FLEX?

FLEX odabir	Tehnička izvrsnost	Jednostavnost
F L E X Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju	Tehnička izvrsnost	Jednostavnost
F L E X Lean odabir Jednostavno upravljajte svojim osnovnim procesima	Tehnička izvrsnost	Jednostavnost
F L E X Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama	Tehnička izvrsnost	Jednostavnost
F L E X Xpert odabir Ovladajte svojim najizazovnijim aplikacijama	Tehnička izvrsnost	Jednostavnost Promjenjivo

Saznajte više o FLEX odabiru

Usporedi

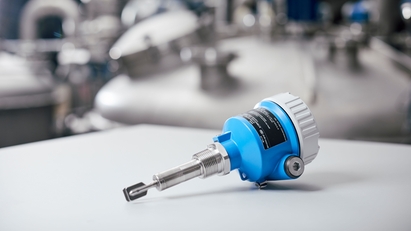

Liquiphant FTL51B - digital, simple and safe

Point level switch for all liquid media

Process temperature -50 °C...+150 °C
(-58 °F...+302 °F)

Process pressure / max. overpressure limit Vacuum...100 bar
Vacuum...1450 psi

Min. density of medium 0.5 g/cm³
(0.4 g/cm³ optional)

Liquiphant FTL31 - Vibronic point level detection

Usporedi

Vibronic Point level detection Liquiphant FTL31

Point level switch for liquids in compact design with stainless steel housing

Process temperature -40 °C ... 150 °C
(-40 °F ... 302 °F)

Process pressure / max. overpressure limit Vacuum ... 40 bar
(Vacuum ... 580 psi)

Min. density of medium >0,7g/cm³
(>0,5g/cm³ optional)

Liquiphant FTL33 - Vibronic point level detection

Usporedi

Vibronic Point level detection Liquiphant FTL33

Point level switch for liquids in compact hygienic design for the food industry

Process temperature -40 °C ... 150 °C
(-40 °F ... 302 °F)

Process pressure / max. overpressure limit Vacuum ... 40 bar
(Vacuum ... 580 psi)

Min. density of medium >0,7g/cm³
(>0,5g/cm³ optional)

New

Usporedi

Liquiphant FTL43 – hygienic point level switch for liquids

Proven in the field, particularly compact and perfectly suitable for hygienic applications

Process temperature -40 °C...+150 °C
(-40 °F...+302 °F)

Process pressure / max. overpressure limit Vacuum...64 bar
(Vacuum...928 psi)

Min. density of medium 0.5 g/cm³ (25.0 lb/ft3)
(0.4 g/cm³ (31.2 lb/ft3) optional)

Usporedi

Vibronic Point level detection Liquiphant FTL51

Pregled nasljednika

Point level switch with extension tube for liquids in all industries

Process temperature -50 °C...+150 °C
(-58 °F...+302 °F)

Process pressure / max. overpressure limit Vacuum...100 bar

Min. density of medium 0.5g/cm³(0.4g/cm³ optional)

Usporedi

Vibronic Point level detection Liquiphant FTL51C

Pregled nasljednika

Point level switch for liquids with highly corrosion-resistant coating

Process temperature -50 °C...+150 °C
(-58 °F...+302 °F)
up to 230 °C / 450°F on request

Process pressure / max. overpressure limit Vacuum...40 bar
(Vacuum...580 psi)

Min. density of medium 0.5g/cm³ (0.4g/cm³ optional)

Usporedi

Liquiphant FTL62 - the specialist for aggressive media

A level switch for aggressive and pumpable liquids

Process temperature -50 °C...+150 °C
(-58 °F...+302 °F)

Process pressure / max. overpressure limit Vacuum...40 bar
Vacuum...580 psi

Min. density of medium 0.5 g/cm³
(0.4 g/cm³ optional)

New

Usporedi

Liquiphant FTL63 – hygienic point level switch for liquids

Proven in the field, easy to use and perfectly suitable for hygienic applications.

Process temperature -50 °C...+150 °C
(-58 °F...+302 °F)

Process pressure / max. overpressure limit Vacuum...64 bar
(Vacuum...928 psi)

Min. density of medium 0.5 g/cm³
(0.4 g/cm³ optional)

Usporedi

Liquiphant FTL64 - reliable detection at high temperatures

A level switch for hot and pumpable liquids

Process temperature -60 °C...+280 °C
(-76 °F...+536 °F)

Process pressure / max. overpressure limit Vacuum...100 bar
Vacuum...1450 psi

Min. density of medium 0.5 g/cm³
(0.4 g/cm³ optional)

Usporedi

Vibronic Point level detection Liquiphant FTL80

Point level switch for liquids for FailSafe overfill protection

Process temperature -60°C...+280°C
(-76°F...+540°F)

Process pressure / max. overpressure limit Vacuum...100 bar
(1450 psi)

Min. density of medium Density from 0.4 g/cm3
(0.4 SGU)

Our product finder helps you to search for suitable measuring devices, software or system components via product characteristics. Applicator leads you through an individual product selection via application parameters.

Go to product finder Go to Applicator

About vibronic point level detection

Vibronic point level detection offers safe overfill prevention in liquids and bulk solids in every industry. The second line of defense guarantees the highest degree of safety and availability of the switches. Liquiphant stands for reliable switching unaffected by: changing media properties, turbulences, foam, vibrations or build-up. In silos containing fine-grained or powdery solids Soliphant is the perfect match. For more information click on the button below.

Vibronic devices perfectly fit for numerous liquid applications from simple operational point level detection (min. and max. control), certified leakage monitoring and overfill prevention through to protective equipment in plant parts subject so Safety Integrity Levels (SIL 2/3). For applications in powdery or lumpy bulk solids the vibronic devices can also be used in hazardous areas, typically in primaries, the chemical or the food industry.
