Liquiphant FTL31 - Vibronic point level detection

Vibronic
Point level detection
Liquiphant FTL31

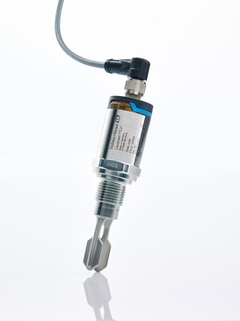

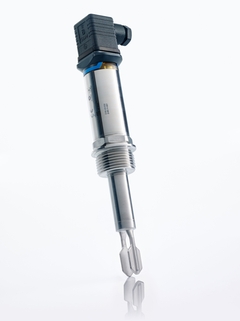

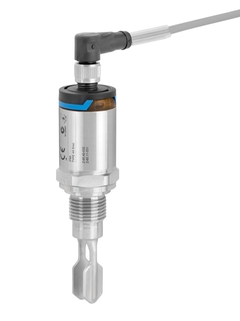

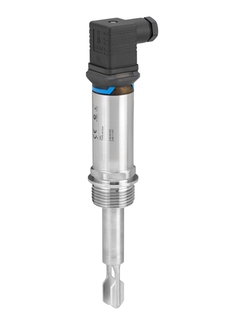

Point level switch for liquids in compact design with stainless steel housing

FTL31

Usporedite

Kratke specifikacije

Process temperature

-40 °C ... 150 °C
(-40 °F ... 302 °F)
Process pressure / max. overpressure limit

Vacuum ... 40 bar
(Vacuum ... 580 psi)
Min. density of medium

>0,7g/cm³
(>0,5g/cm³ optional)

Prikaži sve specifikacije

Područje primjene

Liquiphant FTL31 is a point level switch for liquids. The FTL31 is designed for industrial applications in all industries, mainly the machinery industry. The Liquiphant is used for overfill protection or pump dry-run protection in cleaning systems. The IO-Link capability allows easy parameter setting.
Compact:
- Smallest vibronic sensor in the market
Safe:
- Continuous self-monitoring
-Reliable switching independent of media properties
Easy:
- No calibration
- Plug & play
- IO-Link connectivity

Point level switch in compact design with stainless steel housing.

Process connections: Threads
Temperature: -40 to +150°C (-40 to +302°F)
Pressure: -1 to +40bar (-14.5 to 580psi)
Surface roughness: 3.2µm
Overfill protection and leakage detection WHG, marine approvals, final inspection report

Prednosti

Designed according to highest requirements to quality and environmental sustainability. The self-monitoring Liquiphant offers safe switching also in case of power supply loss.
Independent of changing media properties an accurate switching point is offered. IO-Link reduces costs and complexity due to easy configuration of the devices via engineering tools
A real plug & play sensor is offered without any need for adjustment even with changing media. Measurement is unaffected by conductivity, build-up, turbulence, flows or air bubbles
No calibration is required, no specific know-how or tools (e.g. software) necessary
Robust design made of stainless steel (316L) assures highest durability
A modular design offers different process temperatures and the widest variety of process connections and accessories in the market to fit every application
No mechanically moved parts, free of maintenance

Videozapisi

Liquiphant, Liquipoint, Cerabar, Ceraphant - A strong team for standard level and pressure applications
Vibronic measuring principle
Liquiphant with permanent function check is the safe choice for point level detection in liquids

IO-Link communication

IO-Link communication helps to digitalize your plant
- Više informacija

Fundamental odabir

Jednostavni proizvodi
Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

Što je FLEX?

Jednostavni proizvodi
Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

Što je FLEX?

Standardni proizvodi
Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

Što je FLEX?

Vrhunski proizvodi
Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

Što je FLEX?

Specijalizirani proizvodi
Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

Što je FLEX?

FLEX odabir	Tehnička izvrsnost	Jednostavnost
F L E X Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju	Tehnička izvrsnost	Jednostavnost
F L E X Lean odabir Jednostavno upravljajte svojim osnovnim procesima	Tehnička izvrsnost	Jednostavnost
F L E X Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama	Tehnička izvrsnost	Jednostavnost
F L E X Xpert odabir Ovladajte svojim najizazovnijim aplikacijama	Tehnička izvrsnost	Jednostavnost Promjenjivo

Saznajte više o FLEX odabiru

Loading alternative products

Prethodnik

Liquiphant T FTL260

Uspješne priče

Optimized logistics concept for tank systems

We implemented a highly effective logistics concept at chemicals distributors Brenntag Schweizerhall AG's Basel site.
Pročitajte cijelu priču
Extend SIL proof test intervals with new Liquiphant FTL51

Discover how our customer CABB was able to extend SIL proof test intervals with the new Liquiphant FTL51
Pročitajte cijelu priču
Truck loading - safety solved through trusted partnership

Endress+Hauser provides global chemical and plastics distributor with “total turnkey solution”
Pročitajte cijelu priču

	EN	HR
02/08/2024
01/05/2022

Jezik:	Croatian
Verzije:	02/08/2024
Veličina datoteke:	354.5 KB
Naziv datoteke:	KA01582FHR_0224-00.pdf

Jezik:	Neutralni jezik
Verzije:	22/01/2019
Veličina datoteke:	52.7 KB
Naziv datoteke:	EH_IOLink_LE_Liquiphant_091FD_0x01_0x01_IODD.zip

	EN	HR
25/03/2024
15/09/2023
28/10/2021
30/07/2021
19/06/2020

Jezik:	English
Verzije:	25/03/2024
Veličina datoteke:	1.1 MB
Naziv datoteke:	TI00426FEN_2524.pdf

Jezik:	German
Verzije:	22/07/2019
Veličina datoteke:	1.5 MB
Naziv datoteke:	ZE01011FDE_0219.pdf

	EN	HR
25/01/2021
03/12/2018

	EN	HR
12/07/2022
26/01/2021
30/05/2016
30/09/2014

	EN	HR
05/10/2020
21/12/2018
03/12/2018

	EN	HR
12/07/2022
15/05/2015
30/09/2014
29/09/2014

VibronicPoint level detectionLiquiphant FTL31

Point level switch for liquids in compact design with stainless steel housing

Kratke specifikacije

Process temperature

Process pressure / max. overpressure limit

Min. density of medium

Područje primjene

Prednosti

Videozapisi

IO-Link communication

Fundamental odabir

Prethodnik

Uspješne priče

Optimized logistics concept for tank systems

Extend SIL proof test intervals with new Liquiphant FTL51

Truck loading - safety solved through trusted partnership

Mjerni princip

Characteristic / Application

Supply / Communication

Ambient temperature

Process temperature

Process pressure / max. overpressure limit

Min. density of medium

Main wetted parts

Process connection

Communication

Certificates / Approvals

Safety approvals

Design approvals

Marine approval

Options

Back

KA Liquiphant FTL31

IO Device Description (IODD) - Liquiphant - IO-Link

TI Weld-in adapter, process adapter and flanges

Liquiphant FTL31 IO-Link

Liquiphant FTL31

Liquiphant FTL31 IO-Link

Liquiphant FTL31

KA Liquiphant FTL31

KA Liquiphant FTL31

Liquiphant FTL31, FTL33

Liquiphant FTL31, FTL33

Valve plug

Back

Valve Plug ISO4400 M16, 4-pole

Valve plug ISO4400 NPTF1/2, 4-pole

Valve plug ISO4400 QUICKON, 4-pole

Pressure ring f.weld-in adapt.G3/4" 316L

Sealing ring G1/2, 21x26, FA, 5 pcs.

Sealing ring G3/4, 27x32, FA, 5 pcs.

Sealing ring G1, 33x39 FA, 5 pcs.

Sealing ring 15,08x2,62 EPDM, 5 pcs

O-ring 14.9x2.7 VMQ, FDA, 5 pcs.

O-ring 14.9x2.7 VMQ, FDA, USP, 3 pcs.

O-ring 28.17x3.53 VMQ, FDA, 5 pcs.

O-ring 28.17x3.53 VMQ, FDA, USP, 3 pcs.

O-ring 28.17x3.53 EPDM, FDA, USP, 3 pcs.

Profile gasket 29x36x3.7, FDA, 5 pcs.

Profile gasket 29x36x3.7, FDA, USP, 5pcs

M12-female plug connector, cable side

M12-female plug connec., 100deg,5m cable

M12 socket,90o,316L,IP69,LED,cable L=5m

Socket wrench 32AF

Test magnet

Weld-in adapter G3/4, d=29, 316L

Weld-in adapter G3/4, d=29, 316L, 3.1

Weld-in adapter G3/4 d=50, 316L

Weld-in adapter G3/4 d=50, 316L, 3.1

Weld-in adapter G1, d=53, 316L

Weld-in adapter G1, d=53, 316L, 3.1

Weld-in adapter G1, d=60, 316L

Weld-in adapter G1, d=60, 316L, 3.1

Weld-in adapter G1, adjustable, 316L

Weld-in adapter G1, adjustable,316L, 3.1
