Cerabar PMP75 - Absolute and gauge pressure

Absolute and
gauge pressure
Cerabar PMP75

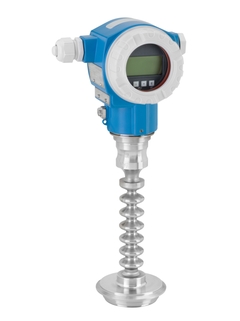

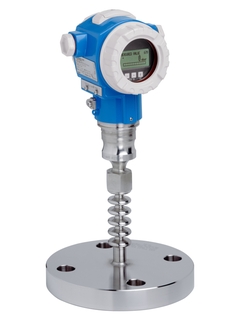

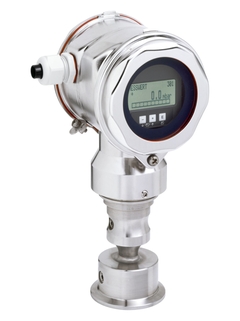

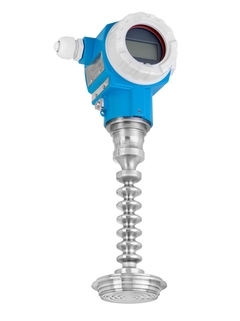

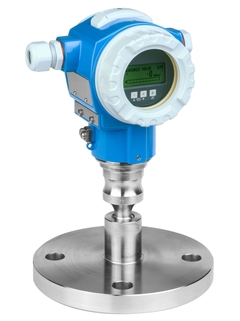

Digital pressure transmitter with fully welded diaphragm seal for measurement in gases or liquids

PMP75

Usporedite

Kratke specifikacije

Accuracy

0,075% + influence of diaphragm seal
Process temperature

-70°C...400°C
(-94°F...752°F)
Pressure measuring range

400 mbar...400 bar
(5.8 psi...6000 psi)
Process pressure / max. overpressure limit

1050bar (15,200psi)
Main wetted parts

Alloy C276
316L
Monel
Tantalum
PTFE-Foil
Max. measurement distance

7000m (22.966ft) H2O
Material process membrane

316L, AlloyC,
Tantal
Rhodium> Gold
PTFE
Measuring cell

400 mbar...400 bar
(5.8 psi...6000 psi)
relative/ absolute

Prikaži sve specifikacije

Područje primjene

The Cerabar PMP75 digital pressure transmitter with metal diaphragm seal is typically used in process and hygiene applications for pressure, level, volume or mass measurement in liquids or gases. Suitable for high pressure as well as extreme process temperature applications from -70 up to +400°C (-94 to 750°F). Quick Setup with adjustable measuring range allows simple commissioning, reduces costs and saves time. Designed according to IEC 61508 for use in SIL2/3 safety applications.

Two chamber aluminum or stainless steel (316L) housing.

Process connections: Threads, flanges or hygienic connections
Process temperature: -70 to +400°C (-94 to +752°F)
Pressure: -1/0 up to 400bar (-15/0 up to +6,000psi)
Accuracy: ±0.075%
International explosion protection certificates, overfill prevention WHG, SIL, hygienic approvals, marine approvals

Prednosti

Large variety of different process connections and membrane materials
New TempC Membrane minimizes influences of ambient and process temperature fluctuations
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Easy menu-guided commissioning via local display, 4 to 20mA with HART, PROFIBUS PA, FOUNDATION Fieldbus
Highest safety due to gas tight feedthrough with capabilities up to SIL2/3, certified to IEC 61508
Cost savings with modular concept for easy replacement of sensor, display or electronics
Overload-resistant and function-monitored from the measuring cell to the electronics
