Kratke specifikacije
-
Process temperature
-50°C ... 280°C
(-60°F ... 540°F) -
Process pressure / max. overpressure limit
Vacuum ... 25 bar
(Vacuum ... 360 psi) -
Min. density of medium
Standard fork: 10 g/l
Short fork: 50 g/l
Područje primjene

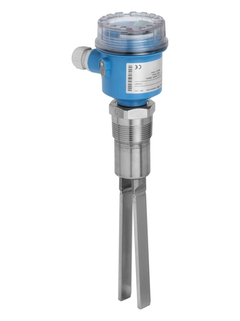

Soliphant FTM50 is a robust point level switch for use in silos containing fine-grained or powdery solids even with a low bulk density. Suitable for a wide range of applications with international certificates for use in dust or gas hazardous areas. Available with polished fork and stainless steel housing with Tri-Clamp or with aluminum housing and coated fork. Maintenance-free device for use in typical applications like: cereals, flour, cocoa, sugar, animal feed, dye powder, chalk.
Point level switch for fine grained solids and powder.
Process connections: Threads, flanges and hygienic connection (Tri-Clamp)
Temperature: -50 to +280°C (-60 to +540°F)
Pressure: -1 to +25bar (-14.5 to +360psi)
Sensor length: 145mm, 200mm
Sensor material: 316L (3,2µm, 0,8µm, PTFE coated, ETFE coated)
International explosion protection certificates
Prednosti
SIL2 in accordance with IEC 61508
No mechanically moved parts, free of maintenance
Measurement not affected by build-up or external vibration
Various electronic inserts: e.g. NAMUR, relay, thyristor and PFM-signal outputs for optimum alignment with the plant control system
Build-up and abrasion display selectable, density setting and switching delay selectable
Choice of coated or polished sensor
Build-up and corrosion detection
Videozapisi
Extended odabir
-
Vrhunski proizvodi
- Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost

-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
FLEX odabir | Tehnička izvrsnost | Jednostavnost |
---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
Prethodnik
-
-
Zaštita od eksplozije
Product family: Soliphant M
Engleska verzija - 10/2016
Product root: FTM50-, FTM51-, FTM52- Region: Europe (ATEX) Approval agency: DEKRA Category: II 1/2 D, II 1/2 G, II 1 D, 005~010 075 015 Protection: Ex ia IIC T6 Ga, Ex ia IIC T6 Ga/Gb, Ex ia 020 045 005, 005~070 020 045 035, Ex ia IIC T6...T3 Ga, Ex ia IIC T6...T3 035, 005~070 035 030 Ex d, Ex ia IIIC T065°C Da, Ex ia IIIC Txxx°C 015|065
Jezik:
English
Verzije:
19/10/2016
Veličina datoteke:
3.1 MB
Naziv datoteke:
KEMA05ATEX1019X_CRT-I3(E)Rev_4.pdf
-
-
-
Zaštita od eksplozije
Product family: Soliphant M
Engleska verzija - 10/2022
Product root: FTM50-, FTM51-, FTM52- Region: Great Britain Approval agency: CML Protection: Ex d
Jezik:
English
Verzije:
12/10/2022
Veličina datoteke:
142.7 KB
Naziv datoteke:
CML 21UKEX1462X Iss. 0.pdf
-
-
-
Tehničke informacije (TI)
Soliphant M FTM50
Vibronic
Predecessor documentation for: |
FTM50 = TI00932FEN HR Odaberite drugi jezik 31/05/202119/04/202128/12/2020Jezik:
English
Verzije:
31/05/2021
Veličina datoteke:
1 MB
Naziv datoteke:
TI01570FEN_0321.pdf
-
-
-
Tehničke informacije (TI)
Soliphant M FTM50, FTM51, FTM52 Technical Information
Universal point level switch for fine-grained bulk solids
Successor documentation for: |
FTM50 = TI01570F | FTM51 = TI01571F | FTM52 = TI01572FEN HR Odaberite drugi jezik 24/10/201908/01/201813/07/201701/03/201712/07/2016Jezik:
English
Verzije:
24/10/2019
Veličina datoteke:
1.9 MB
Naziv datoteke:
TI00392FEN_1819.pdf
-
-
-
Kratke upute (KA)
Soliphant FTM5x Operating instruction
Level limit switch for fine-grained bulk solids with separate housing
Instruction for mounting an shorteningEN HR Odaberite drugi jezik 13/07/201601/02/200702/12/2005Jezik:
English
Verzije:
13/07/2016
Veličina datoteke:
973.6 KB
Naziv datoteke:
KA00264FA6_1316.pdf
-
-
-
Kratke upute (KA)
Exchange of aluminum housing F17 on Soliphant M FTM50, FTM51, FTM52
Exchange of aluminum housing F17 on Soliphant M FTM50, FTM51, FTM52
EN HR Odaberite drugi jezik 19/05/2021Jezik:
English
Verzije:
19/05/2021
Veličina datoteke:
358.8 KB
Naziv datoteke:
KA00631FA2_0705.pdf
-
-
-
Kratke upute (KA)
Exchange of electronic insert on Soliphant M FTM50, FTM51, FTM52
Exchange of electronic insert on Soliphant M FTM50, FTM51, FTM52
EN HR Odaberite drugi jezik 19/05/2021Jezik:
English
Verzije:
19/05/2021
Veličina datoteke:
302.5 KB
Naziv datoteke:
KA00622FA2_0909.pdf
-
-
-
Kratke upute (KA)
Soliphant FTM5x Operating Instruction
Point Level Switch for fine-grained bulk solids with separate housing
and armored tube.
Instruction for mounting and shorteningEN HR Odaberite drugi jezik 13/07/201601/02/200701/10/2005Jezik:
English
Verzije:
13/07/2016
Veličina datoteke:
1.1 MB
Naziv datoteke:
KA00265FA6_1316.pdf
-
-
-
Kratke upute (KA)
Exchange of gasket for cover of stainless steel housing F15
Exchange of gasket for cover of stainless steel housing F15
EN HR Odaberite drugi jezik 20/05/2021Jezik:
English
Verzije:
20/05/2021
Veličina datoteke:
239.5 KB
Naziv datoteke:
KA00620FA2_0805.pdf
-
-
-
Kratke upute (KA)
Soliphant M FTM50, FTM51, FTM52
Point Level Switch for fine-grained bulk solids with separate housing.
Instruction for demounting and mounting of the sensorEN HR Odaberite drugi jezik 13/07/201601/02/200701/05/2006Jezik:
English
Verzije:
13/07/2016
Veličina datoteke:
327 KB
Naziv datoteke:
KA00273FA6_1316.pdf
-
-
-
Kratke upute (KA)
Exchange of sensor on Soliphant M FTM5x - separate version
Exchange of sensor on Soliphant M FTM5x - separate version
EN HR Odaberite drugi jezik 24/04/2012Jezik:
English
Verzije:
24/04/2012
Veličina datoteke:
308.1 KB
Naziv datoteke:
KA00660FA2_1006.pdf
-
-
-
Kratke upute (KA)
Exchange of Polyester housing F16 on Soliphant M
Exchange of Polyester housing F16 on Soliphant M
EN HR Odaberite drugi jezik 19/05/2021Jezik:
English
Verzije:
19/05/2021
Veličina datoteke:
442 KB
Naziv datoteke:
KA00629FA2_0705.pdf
-
