Područje primjene

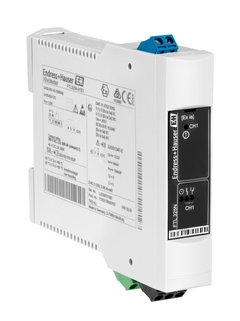

Nivotester FTL325N is a switching unit for point level detection in liquid tanks, also in hazardous explosion areas. Also suitable for overfill prevention in tanks with combustible or non-combustible liquids harmful to water. Two-point control and point level detection. The perfect fit for applications in safety related systems with requirements for functional safety up to SIL2 in accordance to IEC 61508 /IEC 61511 using Liquiphant with electronic insert FEL56 or FEL58.
Switching unit with NAMUR input for rail mounting or single installation.
Ambient temperature: -20 to +50°C (-4 to +122°F)
International explosion protection certificates, overfill prevention WHG, marine approvals
Prednosti

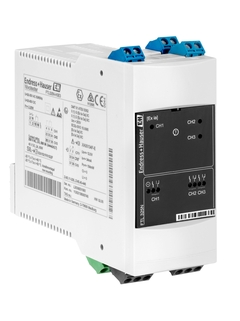

Nivotester FTL325N for connecting one, two or three measuring cells (1-, 2- or 3-channel devices)
Intrinsically safe signal circuits Ex ia for use of measuring sensor in explosion hazardous areas
Functional safety up to SIL2 through line monitoring
DIN Rail housing for simple series installation on standard rails in switch cabinet
Simple wiring using pluggable terminal blocks
NAMUR interface to EN 50227 (DIN 19234; NAMUR) or IEC 60947-5-6 to connect NAMUR sensors or electronic inserts
Extended odabir
Vrhunski proizvodi
Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
©Endress+Hauser
Jednostavni proizvodi
Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
Standardni proizvodi
Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
Vrhunski proizvodi
Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
Tehnička izvrsnost
Jednostavnost
FLEX odabir
Tehnička izvrsnost
Jednostavnost
Fundamental odabir
Udovoljite svojim osnovnim potrebama u mjernju
Tehnička izvrsnost
Jednostavnost
Lean odabir
Jednostavno upravljajte svojim osnovnim procesima
Tehnička izvrsnost
Jednostavnost
Extended odabir
Optimizirajte svoje procese s inovativnim tehnologijama
Tehnička izvrsnost
Jednostavnost
Xpert odabir
Ovladajte svojim najizazovnijim aplikacijama
Tehnička izvrsnost
Jednostavnost
Loading alternative products
Uspješne priče
Time saved, safety increased
Employees of Returkraft regularly have to fulfill and document all requirements of the SIL measuring points in the plant.
Pročitajte cijelu priču
Fit for purpose instrumentation for CNG compressors
The Egyptian government is working to replace liquid fuels with natural gas. To achieve this they targeted increasing the number of CNG stations in their country from 306 to 1000 by the end of 2021.
Pročitajte cijelu priču
Characteristic / Application
Switching unit NAMUR technology for rail mounting
Ambient temperature
Single installation:
Communication
1 Channel: 1 level SPDT + 1 alarm SPST
Certificates / Approvals
ATEX, FM, CSA, IEC Ex, INMETRO, NEPSI, EAC
Safety approvals
Overfill prevention WHG
Characteristic / Application
Switching unit NAMUR technology for rail mounting
Ambient temperature
Single installation:
Communication
1 Channel: 1 level SPDT + 1 alarm SPST
Certificates / Approvals
ATEX, FM, CSA, IEC Ex, INMETRO NEPSI
Safety approvals
Overfill prevention WHG
Najviše preuzimano
Nivotester FTL325N, jedan kanal
Kratke upute za rad
Hrvatska verzija - 06/2019
Nivotester FTL325N; Detektor razine, jedan kanal sa NAMUR ulazom
Za priključivanje bilo kojeg NAMUR senzora
EN
HR
BG CS DA DE EL ES ET FI FR HU ID IT JA KO LT LV NL NO PL PT RO RU SK SL SV TH TR ZH
28/06/2019
Jezik:
Croatian
Verzije:
28/06/2019
Veličina datoteke:
543.5 KB
Naziv datoteke:
KA01433FHR_0119.pdf
Nivotester FTL325N
Engleska verzija - 09/2020
Vibronic
EN
HR
DE ES FR IT JA PL PT RU ZH
29/09/2020
28/06/2019
24/09/2015
01/03/2003
Jezik:
English
Verzije:
29/09/2020
Veličina datoteke:
565.3 KB
Naziv datoteke:
TI00353FEN_1520.pdf
60 dokumenti
EN
HR
German Spanish French Italian Japanese Polish Portuguese Russian Chinese
29/09/2020
28/06/2019
24/09/2015
01/03/2003
Jezik:
English
Verzije:
29/09/2020
Veličina datoteke:
565.3 KB
Naziv datoteke:
TI00353FEN_1520.pdf
Nivotester FTL325N, 3-channel
Vibronic
EN
HR
German Spanish French Italian Japanese Portuguese Russian Chinese
29/09/2020
28/06/2019
Jezik:
English
Verzije:
29/09/2020
Veličina datoteke:
1.2 MB
Naziv datoteke:
BA01973FEN_0220.pdf
Nivotester FTL325N, single-channel
Operating Instructions
Nivotester FTL325N; level detector, single-channel with NAMUR input
EN
HR
German Spanish French Italian Japanese Portuguese Russian Chinese
28/06/2019
Jezik:
English
Verzije:
28/06/2019
Veličina datoteke:
622.5 KB
Naziv datoteke:
BA01972FEN_0119.pdf
KA Nivotester FTL325N, 3 kanala
Detektor razine s NAMUR ulazom
Vibronic
EN
HR
Bulgarian Czech Danish German Greek Spanish Estonian Finnish French Hungarian Indonesian Italian Japanese Korean Lithuanian Latvian Dutch Norwegian Polish Portuguese Romanian Russian Slovak Slovenian Swedish Thai Turkish Chinese
18/06/2024
Jezik:
Croatian
Verzije:
18/06/2024
Veličina datoteke:
355.9 KB
Naziv datoteke:
KA01700FHR_0124-00.pdf
Operating Instructions
Nivotester FTL325N
1-channel, Level detector with NAMUR input
EN
HR
Bulgarian Czech German Spanish French Italian Japanese Dutch Polish Russian
16/09/2015
01/02/2001
Jezik:
English
Verzije:
16/09/2015
Veličina datoteke:
341.1 KB
Naziv datoteke:
KA00170FA6_1315.pdf
KA Nivotester FTL325N, jedan kanal
Detektor razine s NAMUR ulazom
Vibronic
EN
HR
Bulgarian Czech Danish German Greek Spanish Estonian Finnish French Hungarian Indonesian Italian Japanese Korean Lithuanian Latvian Dutch Norwegian Polish Portuguese Romanian Russian Slovak Slovenian Swedish Thai Turkish Chinese
18/06/2024
Jezik:
Croatian
Verzije:
18/06/2024
Veličina datoteke:
349.4 KB
Naziv datoteke:
KA01699FHR_0124-00.pdf
Nivotester FTL325N, jedan kanal
Kratke upute za rad
Nivotester FTL325N; Detektor razine, jedan kanal sa NAMUR ulazom
EN
HR
Bulgarian Czech Danish German Greek Spanish Estonian Finnish French Hungarian Indonesian Italian Japanese Korean Lithuanian Latvian Dutch Norwegian Polish Portuguese Romanian Russian Slovak Slovenian Swedish Thai Turkish Chinese
28/06/2019
Jezik:
Croatian
Verzije:
28/06/2019
Veličina datoteke:
543.5 KB
Naziv datoteke:
KA01433FHR_0119.pdf
Nivotester FTL325N, 3 kanala
Vibronic
EN
HR
Bulgarian Czech Danish German Greek Spanish Estonian Finnish French Hungarian Indonesian Italian Japanese Korean Lithuanian Latvian Dutch Norwegian Polish Portuguese Romanian Russian Slovak Slovenian Swedish Thai Turkish Chinese
29/09/2020
28/06/2019
Jezik:
Croatian
Verzije:
29/09/2020
Veličina datoteke:
872.2 KB
Naziv datoteke:
KA01434FHR_0220.pdf
Nivotester FTL325N
Operating Instructions
"3-channel; Level detector with NAMUR input"
EN
HR
Czech German Spanish French Italian Japanese Dutch Russian
16/09/2015
07/07/2004
Jezik:
English
Verzije:
16/09/2015
Veličina datoteke:
759.9 KB
Naziv datoteke:
KA00171FA6_1315.pdf
2Ex ec nC [ia Ga] IIC T4 Gc X
Jezik:
English
Verzije:
15/08/2022
Veličina datoteke:
414.8 KB
Naziv datoteke:
XA02907FEN_0122-00.pdf
