iTHERM ModuLine TST434B
Industrial modular thermometer

Name: iTHERM ModuLine TST434B
Brand: Endress+Hauser
Availability: InStock

RTD thermometer for outdoor and indoor ambient temperature measurement

TST434B

Usporedite

RTD sensor for ambient temperature measurement — iTHERM ModuLine TST434B RTD thermometer

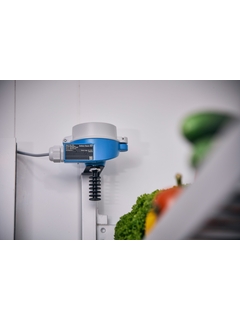

Wall mounted indoor resistance thermometer — Suitable for wall mounting

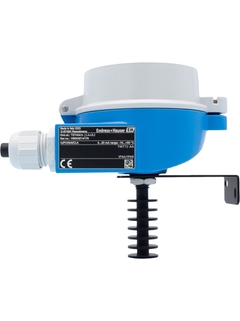

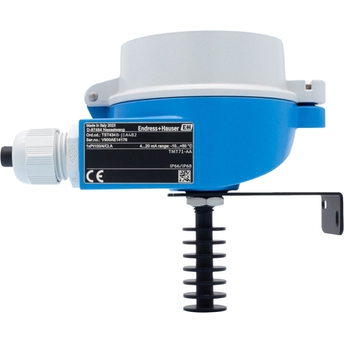

iTHERM ModuLine TST434B RTD thermometer

Kratke specifikacije

Accuracy

class A acc. to IEC 60751
class B acc. to IEC 60751
Max. process pressure (static)

at 20 °C: 1 bar (15 psi)
Operating temperature range

PT 100:
-50 °C ...150 °C
(-58 °F ...302 °F)

Prikaži sve specifikacije

Područje primjene

The iTHERM ModuLine TST434B RTD thermometer is specially designed for monitoring the room temperature in almost all industries.
It is available as a complete unit including Endress+Hauser temperature transmitters for enhanced measurement accuracy and reliability compared to directly wired sensors. With a variety of common and advanced outputs and communication protocols, they offer easy customizing.

Outdoor or indoor ambient temperature measurement
Maximum measuring range: –50 to +150 °C (–58 to +302 °F)
Degree of protection: IP66/68 (NEMA Type 4x encl.)

Prednosti

Robust terminal heads according to DIN EN 50446 or stable plastic housings offer optimal protection from extreme ambient conditions
Reliable, long term stable and accurate indoor or outdoor ambient temperature measurement
Simple and fast wall mounting
Optional head transmitters: Analog 4 to 20 mA, HART®, PROFIBUS® PA, FOUNDATION Fieldbus™, IO-Link, PROFINET® over Ethernet-APL/SPE
