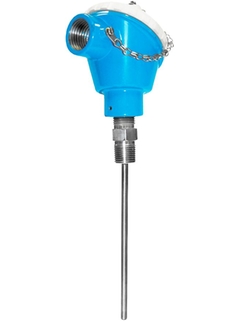

Product picture resistance thermometer TH15

TH15
Modular RTD thermometer, US style

Best in class temperature measurement for general applications

TH15
Please Wait (spinning wheel)
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-

Kratke specifikacije

  • Accuracy

    class A acc. to IEC 60751
    class B acc. to IEC 60751

  • Max. process pressure (static)

    class AA acc. to IEC 60751
    class A acc. to IEC 60751
    class B acc. to IEC 60751

  • Operating temperature range

    PT100 WW:
    -200 °C … 600 °C
    (-328 °F … 1.112 °F)
    iTHERM StrongSens:
    -50 °C … 500 °C
    (-58 °F … 932 °F)
    PT100 TF:
    -50 °C … 200 °C
    (-58 °F … 392 °F)

  • Max. immersion length on request

    up to 41" (1041 mm)
    others on request

Područje primjene

The robust device is a unit ready for use within and existing thermowell and includes various housing transmitter heads to meet the application and space requirement needs. The unit offers enhanced measurement accuracy and reliability. A variety of connections, dimensions and materials (like 316L SS and Hastelloy C276) offer flexible application possibilities.

The TH15 temperature sensors are RTD assemblies designed for use in all types of process industries, including harsh environments, due to their rugged design.
They are made up of a measurement probe with an insulated RTD element and sheath.

The sensor assemblies can be used in process industries such as:

  • Chemicals

  • Petrochemical

  • Power plants

  • Refineries

  • Offshore platforms

Prednosti

  • High flexibility due to modular assembly with standard terminal heads and customized immersion length

  • One source shopping for temperature measurement solutions. World class transmitter with integrated sensor offering for heavy process industry applications. Remove and install straight out of the box!

  • Improved galvanic isolation on most devices (2 kV)

  • Simplified model structure: Competitively priced, offers great value. Easy to order and reorder. A single model number includes sensor and transmitter assembly for a complete point solution

  • All iTEMP® transmitters provide long term stability ≤ 0.05 % per year

  • Fast response time with reduced/tapered tip form

  • Head transmitter with easy selection: Analog output 4 to 20 mA, HART®, PROFIBUS® PA or FOUNDATION Fieldbus™
