Kratke specifikacije
-
Measured variables
CH4, CO, CO2, Corg, HCl, H2O, NH3, NO, NO2, N2O, O2, SO2
-
Ambient temperature range
+5 °C ... +40 °C
-
Process temperature
≤ +1,300 °C
Područje primjene

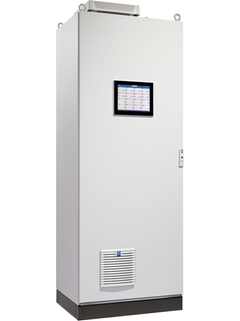

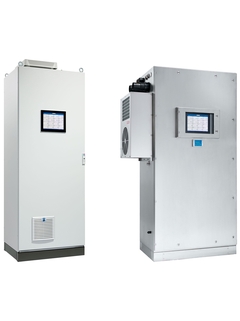

The MCS200HW is a analyzer system for continuous monitoring of up to 10 IR measurement components in flue gases. All parts which touch media are heated above the dew point and therefore protected from corrosion. Internal reference point monitoring allows for a quick check of the measured values with test gases. The web display and the task assistant integrated in the software makes operation very easy. MCS200HW Ex allows reliable emission measurement even in explosion-hazardous areas.
Emission monitoring for waste incineration plants as well as power plants and plants with co-incineration
Measurement of nitrogen oxides in nitric acid plants
Device properties:
Measurement of up to 10 IR components plus O2 and TOC
Wear-free gas distribution through ejector pumps
Reference point monitoring with internal calibration cells
Web server for platform-independent device control
Use of dry test gases for HCl and NH3 Classification for ATEX Zone 2, IIC T3 gb
Prednosti
Only one analyzer necessary for simultaneous monitoring of up to 12 gas components
Convenient, task-oriented operation
Remote access without additional software
High availability due to certified internal third-party monitoring (QAL3) without test gases
High availability due to certified internal third-party monitoring (QAL3) without test gases
Use in explosion-hazardous areas thanks to rugged, pressurized housing
Xpert odabir
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
| FLEX odabir | Tehnička izvrsnost | Jednostavnost |
|---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
Loading alternative products
Uspješne priče
-
-
Brošura kompetencija (CP)
Emission Monitoring Solutions – broad instrument portfolio and longstanding experience
An overview brochure about emission monitoring, their measuring
principles and technologies, global requirements and services, a
selection guide and the measuring devices at a glanceJezik:
English
Verzije:
01/01/2025
Veličina datoteke:
4.5 MB
Naziv datoteke:
8029975_CP_Emission_Monitoring_Solutions_en_V3-0_2025.01_EHS.pdf
-
-
-
Inovacija (IN)
MCS200HW multi-component analyzer system
Proven measuring technology for flue gas monitoring as standard analyzer
cabinet as well as an Ex versionJezik:
English
Verzije:
01/01/2025
Veličina datoteke:
5.8 MB
Naziv datoteke:
8029956_IN_MCS200HW_en_V2-0_2025.01_EHS.pdf
-
