Kratke specifikacije
-
Measured variables
Corg
-
Ambient temperature range
+5 °C ... +40 °C
-
Process pressure
≤ +230 °C
Područje primjene

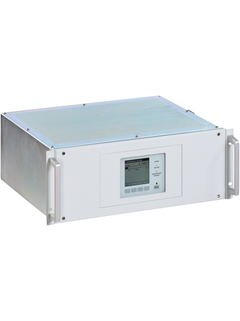

The GMS800 FIDOR extractive gas analyzer is ideally suited for emission measurements according to regulatory requirements. Based on the proven flame ionization detection principle, the GMS800 FIDOR measures total hydrocarbon concentrations in gases at both trace levels and high concentration levels. The different housinga makes stand-alone operation and integration into existing systems such as the MCS200HW multi-component analyzer very easy.
Monitoring of hydrocarbon emissions in raw gas and clean gas
Emissions measurement in thermal, catalytic, and biological exhaust gas cleaning systems
Laboratory applications
Device properties:

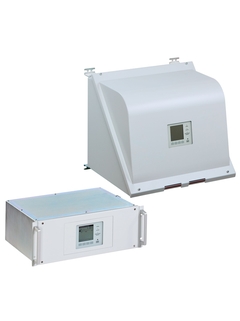

Standard 19” enclosure for easy integration into all industry-typical systems
Space-saving wall housing (stand-alone)
Nearly maintenance free ejector pump
Automatic regulation and compensation of process pressure fluctuations
High degree of linearity (≤ 2 %) for very low and high measuring ranges
Prednosti
Very high availability
Convenient remote diagnosis and operation via Ethernet using SOPAS-ET software
Replacement of complete assemblies and modules makes repairs easy
Hydrogen as fuel gas, expensive helium is not required
Low operating costs, e.g., due to low hydrogen consumption
The GMS811 FIDOR version, on which the BCU control unit can be separated from the analyzer unit, supports convenient control and monitoring from a central control room
