Cleanfit CPA875 is a sterilizable assembly for the life sciences and food & beverage industries

Manual or automatic retractable assembly Cleanfit CPA875

Sterilizable assembly for the life sciences and food & beverage industries

CPA875
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-
Manual or automatic retractable assembly Cleanfit CPA875 ©Endress+Hauser

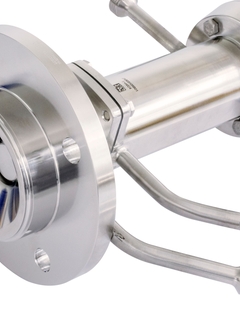

A variety of process connections allows perfect adaption of the assembly to your requirements.

Manual or automatic retractable assembly Cleanfit CPA875 ©Endress+Hauser

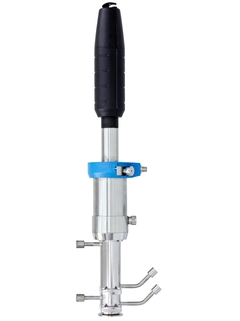

Whether pneumatic or manual operation – the Cleanfit CPA875 assembly is the perfect choice where hygiene counts.

Manual or automatic retractable assembly Cleanfit CPA875 ©Endress+Hauser

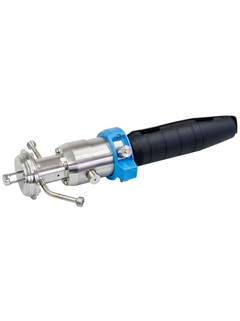

The Cleanfit CPA875 assembly in measuring position.

Manual or automatic retractable assembly Cleanfit CPA875 ©Endress+Hauser

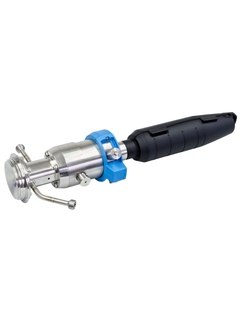

The Cleanfit CPA875 assembly in service position.

Cleanfit CPA875 assembly in service position ©Endress+Hauser

The assembly's patented sealing keeps your process 100% sterile.

Safe position locking ©Endress+Hauser

Safe position locking: If the pressurized air fails, the assembly remains in the previously selected position.

The assembly's protective cap ©Endress+Hauser

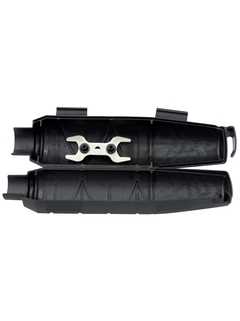

The assembly's protective cap accommodates an open-ended wrench.

The Cleanfit CPA875 retractable assembly ©Endress+Hauser

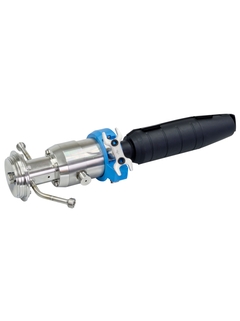

The Cleanfit CPA875 retractable assembly with open-ended wrench attached. Rotate the wrench to move the assembly to a special position where you can clean/sterilize the process seal.

A variety of process connections allows perfect adaption of the assembly to your requirements.

Kratke specifikacije

  • Process temperature

    -10 to 140 °C (14 to 284 °F)

  • Process pressure

    Pneumatic drive: 16 bar up to 140 °C (232 psi up to 284 °F)
    Manual drive: 8 bar up to 140 °C (116 psi up to 284 °F)

Područje primjene

Completely sterilizable, the Cleanfit CPA875 retractable assembly guarantees maximum protection from contamination making it ideal for use in life science and food & beverage applications. Fully certified (EHEDG and ASME BPE) and made of FDA-recommended materials, the CPA875 is the right choice where hygiene counts!

Cleanfit CPA875 is a retractable assembly for pH, ORP, oxygen and NIR sensors with a diameter of 12mm and 225/360mm length.

It has been developed for highest safety in:

  • Food & beverages

  • Biotechnology

  • Life sciences

  • Special chemicals

Prednosti

  • Highest process safety: The patented design of the dynamic sealing prevents
    contamination.

  • Simple operation: Remove, sterilize and calibrate the sensor while the process is running – aseptic and hygienically safe.

  • No cross-contamination: Sterile design according to EHEDG and ASME BPE as well as sealings according to FDA and USP class VI.

  • Flexible: Individual adaptation to your process requirements based on variety of process connections.

  • Optional double service chamber: Sealing between sterile and non-sterile part moves dynamically with the sensor guide – just like in a syringe. The sterile space and the process medium remain untouched.

Videozapisi

  • This video shows how the unique design and sealing principle of the Cleanfit CPA875 retractable assembly guarantees safe sensor handling and eliminates contamination of hygienic processes.
