Kratke specifikacije
-
Measuring range
0.004 to 30 mg/l
0.05 to 330 %SAT
0.1 to 700 hPa -
Process temperature
1 to 140 °C
(32 to 284 °F) -
Process pressure
0.02 to 13 bar abs
(0 to 190 psi)
Područje primjene

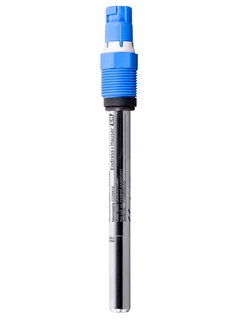

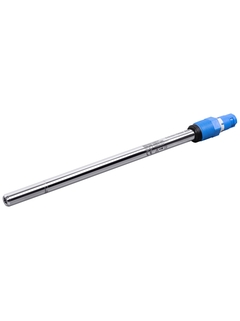

Memosens COS81E is the ideal optical oxygen sensor for hygienic applications. Its well-tuned measuring system prevents ageing of the optical spot and offers precise, long-term stable measurements for high product quality. Thanks to its approvals for hazardous and dust-explosive areas, COS81E is perfectly suited for inertization applications. With Memosens 2.0 digital technology, COS81E offers extended data storage providing the perfect basis for predictive maintenance and efficient operation.
Memosens COS81E measures oxygen in applications with high demands to sterility and hygiene such as:
Fermentation
Drinking water production
Inertization
With its international explosion protection approvals, such as ATEX and IECEx, the Memosens COS81E oxygen sensor is suitable for hazardous area use.
Prednosti
Memosens COS81E is designed according to EHEDG and ASME BPE. It avoids cross-contamination and is fully compliant to USP class VI and FDA as well as all GMP and GLP requirements.
High process up-time: Precalibrate the sensor in your lab and then swap it into your process with plug & play. It does not need polarization time and is immediately ready to measure.
-
Reliable measurement: A built-in reference LED compensates the ageing of the measuring LED. This ensures precise measured values even after CIP/SIP and autoclaving.
Reduce your maintenance effort: Memosens COS81E does not have a difficult-to-handle electrolyte or sensitive membrane. Just exchange the sensor cap, perform a calibration and you are done.
The sensor can be used in process applications as well as benchtop fermenters. Providing you with 100% measuring consistency from the first lab trials to the final scaled-up process and your process lab.
Perfectly suited for inertization processes thanks to its approvals for hazardous and dust-explosive areas.
IIoT ready: Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
Videozapisi
Extended odabir
-
Vrhunski proizvodi
- Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
FLEX odabir | Tehnička izvrsnost | Jednostavnost |
---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
Prethodnik
-
-
Tehničke informacije (TI)
Memosens COS81E
Hygienic optical oxygen sensor with maximum measurement stability over
multiple sterilization cyclesEN HR 13/04/2021Jezik:
English
Verzije:
13/04/2021
Veličina datoteke:
1.6 MB
Naziv datoteke:
TI01558CEN_0120.pdf
-
-
-
Upute za uporabu (BA)
Memosens COS81E
Hygienic, optical sensor with Memosens 2.0 technology forthe
measurement of oxygenEN HR 13/04/202102/10/2020Jezik:
English
Verzije:
13/04/2021
Veličina datoteke:
1.9 MB
Naziv datoteke:
BA02066CEN_0221.pdf
-
-
-
Kratke upute (KA)
Memosens COS81E
Higijenski, optički senzor s tehnologijom 2.0 Memosens zamjerenje
kisikaEN HR 12/04/202102/10/2020Jezik:
Croatian
Verzije:
12/04/2021
Veličina datoteke:
662.6 KB
Naziv datoteke:
KA01484CHR_0221.pdf
-
-
-
Upute za ugradnju (EA)
EA Kit COV81
For the maintenance of COS81D/E sensors
EN HR 02/10/202414/12/2022Jezik:
English
Verzije:
02/10/2024
Veličina datoteke:
757.4 KB
Naziv datoteke:
EA01460CEN_0224-00.pdf
-
-
-
Ex sigurnosne upute (XA)
Memosens COS81E
Supplement to BA02066C
Safety instructions for electrical apparatus in explosion-hazardous
areasEN HR 05/07/2021Jezik:
English
Verzije:
05/07/2021
Veličina datoteke:
504.6 KB
Naziv datoteke:
XA02475CEN_0121.pdf
-
-
-
Ex sigurnosne upute (XA)
Memosens COS81E
Supplement to BA02066C
Safety instructions for electrical apparatus in explosion-hazardous
areasEN HR 05/07/2021Jezik:
English
Verzije:
05/07/2021
Veličina datoteke:
591.3 KB
Naziv datoteke:
XA02476CEN_0121.pdf
-
-
-
Ex sigurnosne upute (XA)
Memosens COS81E
Nadopuna za BA02066C
Sigurnosne upute za električne uređaje u eksplozivnim / opasnim
područjimaEN HR 05/07/202115/10/2020Jezik:
Croatian
Verzije:
05/07/2021
Veličina datoteke:
1.3 MB
Naziv datoteke:
XA02238CHR_0221.pdf
-
-
-
Ex sigurnosne upute (XA)
Memosens COS81E
IS Class I Div 1 Groups A, B, C, D
Ex ia op is IIC T6 Ga
Class I Zone 0 AEx ia op is IIC T6 Ga
IS Class II Division 1 Groups E, F, G
Ex ia op is IIIC T90 °C Da
Zone 20 AEx ia op is IIIC T90 °C Da
Safety instructions for electrical apparatus in explosion-hazardous
areasEN HR 18/02/2022Jezik:
English
Verzije:
18/02/2022
Veličina datoteke:
498.7 KB
Naziv datoteke:
XA03098CEN_0122-00.pdf
-
-
-
Ex sigurnosne upute (XA)
Memosens COS81E
UK Ex II 1G Ex ia op is IIC T6… T3 Ga
UK Ex II 1D Ex ia op is IIIC T90°C… T200°C Da
Safety instructions for electrical apparatus in explosion-hazardous
areasJezik:
English
Verzije:
11/03/2022
Veličina datoteke:
419 KB
Naziv datoteke:
XA02842CEN_0122-00.pdf
-
-
-
Ex sigurnosne upute (XA)
Memosens COS81E
KOR Ex ia op is IIC T6… T3 Ga
KOR Ex ia op is IIIC T90°C… T200°C Da
Safety instructions for electrical apparatus in explosion-hazardous
areasEN HR 18/03/2022Jezik:
English
Verzije:
18/03/2022
Veličina datoteke:
418.5 KB
Naziv datoteke:
XA02838CEN_0121-00.pdf
-
