Kratke specifikacije
-
Input
1...8x Memosens digital input
2x 0/4..20mA Input optional
2..4x Digital input optional -
Output / communication
2...8x 0/4...20 mA current outputs
alarmrelay
4x relay
ProfibusDP
Modbus RS485
Modbus TCP
Ethernet -
Ingress protection
IP20 transmitter
IP66 optional Display
Područje primjene

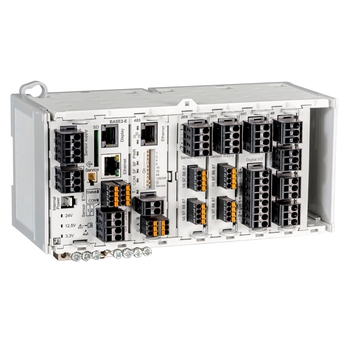

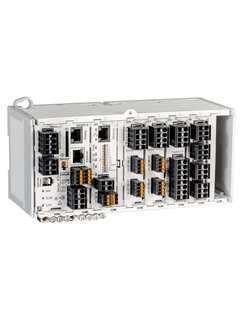

Liquiline CM448R allows you to connect up to 8 Memosens sensors of your choice from over 12 measurement parameters. With its compact design, it fits into any cabinet - and even offers inputs, outputs, controllers, and math modules, e.g. for control of sensor cleaning. The transmitter belongs to the Liquiline platform with standardized system integration, operation, and spare parts. Heartbeat Technology helps you find the ideal balance between measurement point availability and maintenance costs.
Liquiline CM448R is suitable for all industries and their utilities, such as:
Food & Beverages
Life Sciences
Power & Energy
Water & Wastewater
Chemicals
Marine
It features the following communication protocols and interfaces:
0/4...20 mA
HART
PROFIBUS DP
Modbus RS485/RTU
Modbus TCP
EtherNet/IP
PROFINET
Webserver
The transmitter can be extended with a module whose explosion protection approvals, such as IECEx, ATEX, and CSA, allow the connection of sensors installed in hazardous areas.
Prednosti
Saves space, saves money:
Small footprint, 8 channels in one device, saves space in cabinets – perfect for skids.High-speed installation:
No cut-out in cabinet door, one-click DIN-rail mounting, minimized wiring.Simple and safe commissioning:
Saving configuration on SD card enables fast set-up on duplicate installations.Easy to operate and service:
Intuitive user interface, hot plug & play with pre-calibrated Memosens sensors, universal components fit all parameters.Process control from a distance:
Integrated web server that allows the operator to remotely view diagnostic data, perform configurations, or access device parameters in any web browser - even via Smartphone.Higher availability, lower costs:
Heartbeat Technology enables status-oriented maintenance and easy verification of the entire measuring point and helps to carry out optimization measures.Drive connectivity: Liquiline Edge Module CYY7 transfers process data to Netilion, independently of the fieldbus. This allows remote overview and the use of IIoT services. It’s available in new products or as upgrade to installed Liquiline platforms.
Videozapisi
Extended odabir
-
Vrhunski proizvodi
- Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost

-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
FLEX odabir | Tehnička izvrsnost | Jednostavnost |
---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
-
-
Tehničke informacije (TI)
TI Liquiline CM442R/CM444R/CM448R
Cabinet controller with a maximum of eight measuring channels based on digital Memosens technology
EN HR 12/03/202528/08/202410/08/202203/05/202211/05/2020Jezik:
English
Verzije:
12/03/2025
Veličina datoteke:
6.7 MB
Naziv datoteke:
TI01112CEN_1325-00.pdf
-
-
-
Upute za uporabu (BA)
Memosens
Sensor inputs with Memosens protocol
EN HR 30/05/202228/02/2019Jezik:
English
Verzije:
30/05/2022
Veličina datoteke:
3.3 MB
Naziv datoteke:
BA01245CEN_0822-00.pdf
-
-
-
Upute za uporabu (BA)
BA Liquiline CM442R/CM444R/CM448R
Universal four-wire multichannel controller
Cabinet installationEN HR 19/03/202525/09/202310/08/202208/10/202120/04/2021Jezik:
English
Verzije:
19/03/2025
Veličina datoteke:
8.7 MB
Naziv datoteke:
BA01225CEN_1825-00.pdf
-
-
-
Upute za uporabu (BA)
Istruzioni di funzionamento Liquiline CM442R/CM444R/CM448R
Controllore universale multicanale a quattro fili per installazione in
armadio
di controllo
Manutenzione e diagnosticaEN HR 27/06/2013Jezik:
Italian
Verzije:
27/06/2013
Veličina datoteke:
1.4 MB
Naziv datoteke:
BA01227CIT_0113.PDF
-
-
-
Kratke upute (KA)
KA Liquiline CM442R/CM444R/CM448R
Univerzalni četverožični višekanalni upravljač za ugradnju ormara
EN HR 25/09/202312/08/202208/10/202120/04/202130/11/2019Jezik:
Croatian
Verzije:
25/09/2023
Veličina datoteke:
3.9 MB
Naziv datoteke:
KA01160CHR_1123-00.pdf
-
-
-
Upute za ugradnju (EA)
Kit CM44xR
External display
EN HR 24/02/202327/06/2013Jezik:
English
Verzije:
24/02/2023
Veličina datoteke:
1.1 MB
Naziv datoteke:
EA01080CEN_0223-00.pdf
-
-
-
Upute za ugradnju (EA)
SD card kit
32 GB, industrial flash drive
EN HR 23/03/2021Jezik:
English
Verzije:
23/03/2021
Veličina datoteke:
506.7 KB
Naziv datoteke:
EA01354CEN_0121.pdf
-
-
-
Upute za ugradnju (EA)
Kit CM44x/CSXxx/CA80XX
Module 485MB or 485DP
For Ethernet configuration, PROFIBUS DP, Modbus RS485EN HR 28/11/2022Jezik:
English
Verzije:
28/11/2022
Veličina datoteke:
1.8 MB
Naziv datoteke:
EA01447CEN_0122-00.pdf
-
-
-
Upute za ugradnju (EA)
Installation Instructions Liquiline CM44xR
Service display for rail mounted device
EN HR 06/03/2014Jezik:
English
Verzije:
06/03/2014
Veličina datoteke:
138.3 KB
Naziv datoteke:
EA01100CA2_0113.pdf
-
-
-
Upute za ugradnju (EA)
SD card kit
Industrial flash drive, 1 GB
With firmware, no. 71127100
Without firmware, no. 71110815EN HR 23/03/202109/10/202020/03/201725/06/201401/07/2012Jezik:
English
Verzije:
23/03/2021
Veličina datoteke:
506.9 KB
Naziv datoteke:
EA00011CEN_0621.pdf
-
