Kratke specifikacije
-
Measuring range
-1500mV to +1500mV
-
Process temperature
0 to 80 °C (32 to 170 °F)
-
Process pressure
1 to 10 bar abs at 80 °C
(15 to 145 psi abs at 176 °F)
Područje primjene

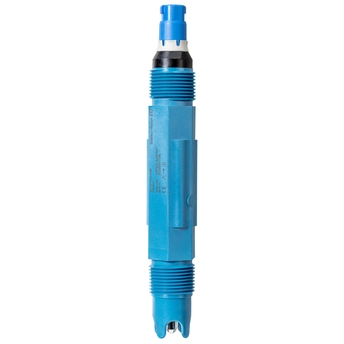

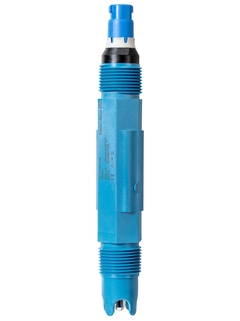

Memosens CPF82E is the digital, robust solution for ORP measurement in harsh environments. Its large, dirt-repellent PTFE junction guarantees low maintenance while its integrated assembly offers easy and compact installation. Thanks to Memosens 2.0 digital technology, CPF82E combines maximum process integrity with simple operation. It resists moisture, enables lab calibration and offers extended storage of calibration and process data providing the perfect basis for predictive maintenance.
Memosens CPF82E is the robust ORP sensor for treatment of industrial water and wastewater and for processes in mining industries. It monitors:
Inlet and outlet
Neutralization
Flotation
Leaching
With CSA C/US approval for use in hazardous areas, zones 0, 1 and 2.
Prednosti
Memosens 2.0 offers extended storage of calibration and process data, enabling better trend identification and providing a future-proof basis for predictive maintenance and enhanced IIoT services.
Long time stable: Double junction provides better protection against electrode poisoning ions such as S2- or CN-.
Robust polymer housing protects against mechanical damage.
The sensor is suitable for flow and immersion installation
Non-contact, inductive signal transmission maximizes process safety.
Minimum process downtime and extended sensor lifetime reduce operating costs.
Videozapisi
Extended odabir
-
Vrhunski proizvodi
- Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
| FLEX odabir | Tehnička izvrsnost | Jednostavnost |
|---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
Loading alternative products
Prethodnik
Uspješne priče
Također vas može interesirati
11 dokumenti
-
-
Tehničke informacije (TI)
Memosens CPF82E
ORP sensor for mining operations, industrial water and wastewater
treatmentEN HR 14/04/2021Jezik:
English
Verzije:
14/04/2021
Veličina datoteke:
878.8 KB
Naziv datoteke:
TI01595CEN_0121.pdf
-
-
-
Upute za uporabu (BA)
pH senzori CPSx1E, CPFx1E ORP senzori CPSx2E, CPFx2E
Mjerenje pH i ORP vrijednosti
EN HR 14/10/202131/03/202115/03/202109/07/202019/05/2020Jezik:
Croatian
Verzije:
14/10/2021
Veličina datoteke:
1 MB
Naziv datoteke:
BA01988CHR_0421.pdf
-
-
-
Ex sigurnosne upute (XA)
Memosens pH/ORP sensors
CSA C/US IS Cl. I Div. 1 GP A-D T3/T4/T6 + CSA C/US IS Cl. I Zone 0 AEx
ia IIC T3/T4/T6
CSA C/US IS Cl. I Div. 1 GP A-D T4/T6 + CSA C/US IS Cl. I Zone 0 AEx ia
IIC T4/T6
CSA C/ US Cl. 1 Div 1&2 GP A-D T6…T3
Safety InstructionsEN HR 01/12/202215/02/202220/08/2020Jezik:
English
Verzije:
01/12/2022
Veličina datoteke:
860.7 KB
Naziv datoteke:
XA02235CEN_0422-00.pdf
-
-
-
Područja djelatnosti (FA)
Sensors, transmitters, compact devices and assemblies
Experts in Liquid Analysis
Jezik:
English
Verzije:
24/09/2024
Veličina datoteke:
4.2 MB
Naziv datoteke:
FA00007CEN_Analyse_21.24_LowRes.pdf
-
-
-
Područja djelatnosti (FA)
Sensoren, Messumformer, Kompaktgeräte and Armaturen
Kompetenz in der Flüssigkeitsanalyse
Jezik:
German
Verzije:
24/09/2024
Veličina datoteke:
4.1 MB
Naziv datoteke:
FA00007CDE_Analyse_21.24_LowRes.pdf
-
-
-
Izjava proizvođača
Product family: Memosens, OrbiPore, OrbiSint
Product root: CPF81E-, CPF82E-, CPS11D-, CPS11E-, CPS12D-, CPS12E-, CPS16E-, CPS31D-, CPS31E-, CPS41E-, CPS42E-, CPS47E-, CPS61E-, C
PS71E-, CPS72E-, CPS76E-, CPS77E-, CPS91D-, CPS91E-, CPS92D-, CPS92E-, CPS96E-, CPS97E-
Declaration number: HE_01379_03.23
Manufacturer specification: PED
Additional information: CRNEN HR 10/05/2023Jezik:
English
Verzije:
10/05/2023
Veličina datoteke:
306.9 KB
Naziv datoteke:
CPSxxE_CRN_HE_01379_03.23.pdf
-
-
-
Izjava proizvođača
Product family: Memosens
Product root: CPF82E-
Declaration number: HE_01872_01.24
Manufacturer specification: RoHS
Additional information: China-RoHSEN HR 18/01/2024Jezik:
English
Verzije:
18/01/2024
Veličina datoteke:
392.7 KB
Naziv datoteke:
HE_01872_01.24_CPF82E_China-RoHS_orange.pdf
-
-
-
EU deklaracija
Product family: Memosens, OrbiPac
Product root: CPF81E-, CPF82E-
Declaration number: EU_00910_01.21EN HR 11/05/2021Jezik:
English
Verzije:
11/05/2021
Veličina datoteke:
276 KB
Naziv datoteke:
EU_00910_01.21_CPF8xE unterschrieben.pdf
-
-
-
Ocijenjena sukladnost za UK
Product family: Memosens
Product root: CPF81E-, CPF82E-
Declaration number: UK_00394_01.21Jezik:
English
Verzije:
28/10/2022
Veličina datoteke:
92.1 KB
Naziv datoteke:
UK_00394_01.21 CPF81_82E NonEx.pdf
-
-
-
Zaštita od eksplozije
Product family: Memocheck, Memosens
Product root: CLS15E-, CLS16E-, CLS21E-, CLS82E-, COS22E-, COS51E-, COS81E-, CPF81E-, CPF82E-, CPS11E-, CPS12E-, CPS16E-, CPS31E-, C
PS41E-, CPS42E-, CPS47D-, CPS47E-, CPS61E-, CPS62E-, CPS71E-, CPS72E-, CPS76E-, CPS77D-, CPS77E-, CPS91E-, CPS92E-, CPS96E-, CPS97D-
, CPS97E-, CYP02E-
Region: USA
Approval agency: CSA
Protection: Ex i Cl. I Div. 1Jezik:
English
Verzije:
10/02/2022
Veličina datoteke:
2 MB
Naziv datoteke:
CoFC_80086777_EN with Control_Drawing.pdf
-
