Kratke specifikacije
-
Measuring range
2µS/cm to 2000 mS/cm
-
Process temperature
PEEK: max. 125°C (max. 260 °F)
PFA: max. 110°C (max. 230 °F) -
Process pressure
PEEK: max. 21 bar (max. 304.5 psi)
PFA: max. 17 bar (max. 246.5 psi)
Područje primjene

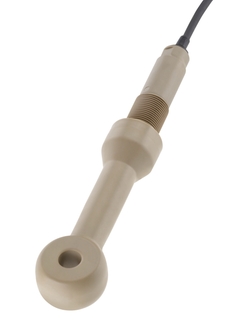

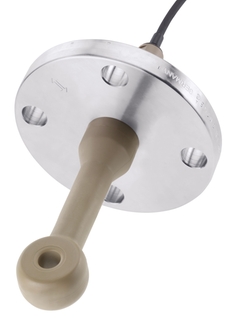

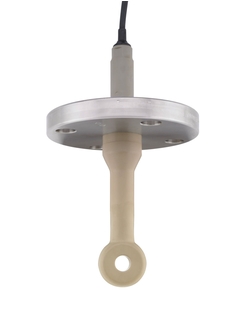

Indumax CLS50D is a digital inductive conductivity sensor for standard, hazardous and high-temperature applications. Benefit from high chemical resistance and long durability thanks to robust materials (PFA, PEEK). Moreover, it is insensitive to soiling and performs reliable and repeatable even in harsh and aggressive media. Thanks to Memosens, CLS50D combines maximum process and data integrity with simple operation. It resists corrosion and moisture and facilitates predictive maintenance.
Indumax CLS50D measures toroidal conductivity in:
Chemicals:
- Concentration measurement of acids and bases
- Quality monitoring of chemical products in tanks and pipesFood & Beverages:
- Phase separation of product/product mixtures in pipe systemsLife Sciences:
- Phase separation of product/product mixtures in pipe systemsWastewater industry:
- Inlet monitoring
With its international explosion protection approvals, such as ATEX, FM, CSA, NEPSI, it is suitable for hazardous areas.
Prednosti
High durability and chemical resistance even under harsh conditions
Dirt-repellent materials and large sensor opening avoid soiling
Wide temperature range and highly resistant materials make the sensor suitable for virtual any application
Reliable values thanks to active connection monitoring
Easy wiring over long distances without impact on the measurement accuracy
-
Logging of sensor-specific data for easy traceability
-
Approved for hazardous area use
Videozapisi
Extended odabir
-
Vrhunski proizvodi
- Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
| FLEX odabir | Tehnička izvrsnost | Jednostavnost |
|---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
Loading alternative products
Uspješne priče
Također vas može interesirati
256 dokumenti
-
-
Tehničke informacije (TI)
TI Indumax CLS50D/CLS50
Inductive conductivity sensor for standard, Ex and high-temperature
applicationsEN HR 09/08/202308/07/202227/01/202231/10/201831/01/2015Jezik:
English
Verzije:
09/08/2023
Veličina datoteke:
943.2 KB
Naziv datoteke:
TI00182CEN_2023-00.pdf
-
-
-
Upute za uporabu (BA)
BA Indumax CLS50D/CLS50
Induktivni senzor vodljivosti za standardne, Ex i visoke temperature
primjeneEN HR 09/08/202321/02/202227/01/202031/10/201831/08/2017Jezik:
Croatian
Verzije:
09/08/2023
Veličina datoteke:
800.5 KB
Naziv datoteke:
BA00182CHR_2323-00.pdf
-
-
-
Ex sigurnosne upute (XA)
Indumax CLS50D, CLS50
FM IS/NI Cl.I Div. 1/2 GP A, B, C and D
Safety instructions for electrical apparatus in explosion-hazardous
areasJezik:
English
Verzije:
22/03/2022
Veličina datoteke:
429.3 KB
Naziv datoteke:
XA02843CEN_0122-00.pdf
-
-
-
Ex sigurnosne upute (XA)
XA Indumax CLS50D
Inductive conductivity sensor for standard, Ex and high-temperature
applications
JPN Ex ia IIC T4 GaEN HR 23/10/202327/08/2021Jezik:
English
Verzije:
23/10/2023
Veličina datoteke:
425.6 KB
Naziv datoteke:
XA02646CEN_0223-00.pdf
-
-
-
Ex sigurnosne upute (XA)
XA Indumax CLS50D, CLS50
Inductive conductivity sensor for standard, Ex and high-temperature
applications
NEPSI Ex ia IIC T4/T6 GaEN HR 31/08/202308/03/202201/05/2009Jezik:
English
Verzije:
31/08/2023
Veličina datoteke:
529.2 KB
Naziv datoteke:
XA00441CEN_1423-00.pdf
-
-
-
Ex sigurnosne upute (XA)
CLS50D, CLS50, CLS54, CLS15D, CLS16D, CLS21D, CLS82D
Supplement to: BA00182C, BA01591C, BA01147C, BA01326C
Safety instructions for electrical apparatus in explosion-hazardous
areas
UK II 1G Ex ia IIC T3/T4/T6 GaEN HR 31/01/202220/10/2021Jezik:
English
Verzije:
31/01/2022
Veličina datoteke:
459.6 KB
Naziv datoteke:
XA02702CEN_0222-00.pdf
-
-
-
Ex sigurnosne upute (XA)
XA Indumax CLS50D
Inductive conductivity sensor for standard, Ex and high-temperature
applications
KOR Ex ia IIC T4/T6 GaEN HR 25/07/2024Jezik:
English
Verzije:
25/07/2024
Veličina datoteke:
424.6 KB
Naziv datoteke:
XA03302CEN_0124-00.pdf
-
-
-
Ex sigurnosne upute (XA)
XA Indumax CLS50D, CLS50
Inductive conductivity sensor for standard, Ex and high-temperature
applications
INMETRO Ex ia IIC T4/T6 GaEN HR 25/07/2024Jezik:
English
Verzije:
25/07/2024
Veličina datoteke:
442.8 KB
Naziv datoteke:
XA03306CEN_0124-00.pdf
-
-
-
Ex sigurnosne upute (XA)
CLS15D, CLS16D, CLS21D, CLS50D, CLS50, CLS54, CLS82D
Safety instructions for electrical equipment in explosion-hazardous
areas
EAC Ex, 0Ex ia IIC T6/T4 Ga X
Supplement to:
BA01147C,BA00182C, BA01591C, BA01326CEN HR 01/03/202231/03/2021Jezik:
English
Verzije:
01/03/2022
Veličina datoteke:
507 KB
Naziv datoteke:
XA02375CEN_0222-00.pdf
-
-
-
Ex sigurnosne upute (XA)
Indumax CLS50D, CLS50
ATEX II 1G Ex ia IIC T4/T6 Ga
IECEx ia IIC T4/T6 Ga (samo CLS50D)
Sigurnosne upute za električnu opremu u eksplozivnim / opasnim
područjimaEN HR 07/03/202201/01/200701/09/200301/02/2000Jezik:
Croatian
Verzije:
07/03/2022
Veličina datoteke:
444.5 KB
Naziv datoteke:
XA00182CHR_1322-00.pdf
-
4 products & bundles
4 proizvodi
Često se kupuju zajedno
Pribor
- Calibration solution CLY11-A, 74,0 uS/cm
- Calibration solution CLY11-B,149,6 uS/cm
Povezani proizvodi
