Radar measurement
Time-of-Flight

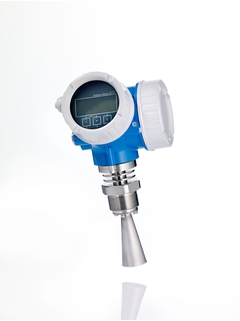

Micropilot FMR51

The standard sensor for highest demands in liquid level measurement

FMR51

Usporedite

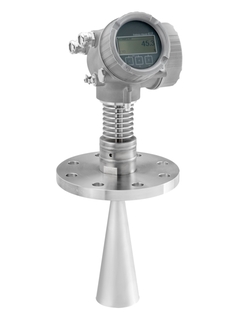

Micropilot FMR51 stainless steel housing

Kratke specifikacije

Accuracy

+/- 2 mm (0.08 in)
Process temperature

XT: -196...+280 °C
(-321...+536 °F)
HT: -196...+450 °C
(-321...+842 °F)
Process pressure / max. overpressure limit

Vacuum...160 bar
(Vacuum...2320 psi)
Max. measurement distance

Standard: 40 m (131 ft)
With "Advanced dynamics": 70 m (230 ft)
Main wetted parts

316L, Alloy C, PTFE, ceramic

Prikaži sve specifikacije

Područje primjene

Micropilot FMR51 for level measurement even under extreme process conditions like high temperature and high pressure in the oil & gas and chemical industry. The FMR51 free space radar offers maximum reliability due to an innovative and patented sensor-design. Micropilot is used for continuous, non-contact level measurement of liquids, pastes and slurries. The measurement is not affected by changing media, temperature changes, gas blankets or vapors. Remote access via SmartBlue app is available.

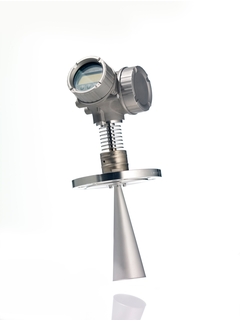

Horn antenna for level measurement even under extreme conditions.

Process connections: Thread, Tri-Clamp or flange
Temperature: -196 to +450°C (-321 to + 842°F)
Pressure: -1 to +160bar (-14.5 to +2,320psi)
Maximum measuring range: 40m (131ft), 70m (230ft) for enhanced dynamics
Accuracy: ±2mm
K-band: 26GHz
International explosion protection certificates, overfill prevention WHG, SIL, marine approvals, 5-point linearity protocol
Remote access with SmartBlue App via Bluetooth® is available

Prednosti

Hardware and software developed according to IEC 61508 up to SIL3 (in homogeneous redundancy)
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Highest reliability even in the presence of obstructions in the vessel due to new Multi-Echo Tracking evaluation
Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
World's easiest proof test concept for SIL and WHG saves time and cost
Highest safety due to double ceramic coupling and gas-tight feedthrough

Videozapisi

Time-of-Flight measuring principle
Commissioning movie for Micropilot FMR5x free space radar and Levelflex FMP5x guided radar
Unique HistoROM data management concept for safe level measurement
Continuous adapting algorithms offering safe level measurement due to Multi-Echo Tracking
Micropilot with Advanced Dynamics offering more reliable measuring signals even in the case of turbulences
Micropilot FMR5x with Advanced Diagnostic functions offers foam detection
