Kratke specifikacije
-
Process temperature
-50°C ... 180°C
(-58°F ... 356°F) -
Process pressure / max. overpressure limit
Vacuum ... 25 bar
(Vacuum ... 362 psi)
Područje primjene

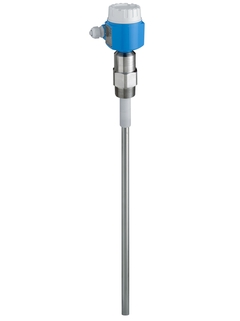

Solicap FTI55 is a fully/partly insulated and robust rod probe for point level detection of fine-grained to coarse-grained bulk solids. It offers maximum reliability due to its active build-up compensation and is suited for a wide range of applications thanks to numerous certificates and approvals. Due to its robust construction, it can also be used to provide accurate measurements in applications with very high lateral loads up to 300Nm.
For applications with very high lateral loads up to 300Nm. Fieldgate and Solicap represent a solution for material provisioning and logistical optimization (inventory control)
Process connections: Flanges and threads
Measurement range: 200 to 4,000mm (4 to 157")
Temperature: -50 to +180°C (-58 to +356°F)
Pressure: -1 to +25bar (-14.5 to +363psi)
International explosion protection certificates, SIL
Prednosti
Highest safety and reliability due to robust design for demanding process conditions
Cost savings thanks to easy and fast commissioning as calibration is performed at the press of a button
Universal application thanks to wide range of certificates and approvals
Two-stage overvoltage protection against static discharges from the silo

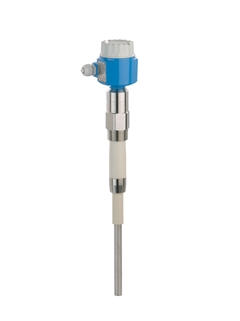

Active build-up compensation for bulk solids with caking tendency (under development)
Increased safety due to permanent automatic monitoring of electronics
Reduction in storage costs thanks to easy-to-shorten rod model (for partial insulation) and rope model (for partial and full insulation)
Videozapisi
Extended odabir
-
Vrhunski proizvodi
- Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
| FLEX odabir | Tehnička izvrsnost | Jednostavnost |
|---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
Loading alternative products
Prethodnik
Uspješne priče
50 dokumenti
-
-
Tehničke informacije (TI)
TI Solicap M FTI55
Capacitance
EN HR 05/09/202425/09/2023Jezik:
English
Verzije:
05/09/2024
Veličina datoteke:
1.1 MB
Naziv datoteke:
TI01556FEN_0224-00.pdf
-
-
-
Tehničke informacije (TI)
Solicap M FTI55, FTI56 Technical Information
Point level switch for bulk solids
EN HR 26/10/201505/03/201014/11/200826/08/2006Jezik:
English
Verzije:
26/10/2015
Veličina datoteke:
1.4 MB
Naziv datoteke:
TI00418FEN_1315.pdf
-
-
-
Upute za uporabu (BA)
BA Solicap M FTI55
Capacitance
EN HR 05/09/202425/09/2023Jezik:
English
Verzije:
05/09/2024
Veličina datoteke:
2.5 MB
Naziv datoteke:
BA02033FEN_0224-00.pdf
-
-
-
Upute za uporabu (BA)
Solicap M FTI55, FTI56 Operating Manual
Capacitive point level switch
EN HR 26/10/201505/03/201014/11/200826/09/2006Jezik:
English
Verzije:
26/10/2015
Veličina datoteke:
1.9 MB
Naziv datoteke:
BA00300FEN_13.15.pdf
-
-
-
Kratke upute (KA)
Solicap M FTI55
Prekidač razine točke kapacitivnosti
EN HR 01/09/2021Jezik:
Croatian
Verzije:
01/09/2021
Veličina datoteke:
700.5 KB
Naziv datoteke:
KA01485FHR_0120.pdf
-
-
-
Upute za ugradnju (EA)
Cover for housing T13 terminal compartment Installation instruction
Liquiphant M/S, Soliphant M, Liquicap M, Solicap M/S
EN HR 24/02/202215/08/201409/08/2012Jezik:
English
Verzije:
24/02/2022
Veličina datoteke:
119 KB
Naziv datoteke:
EA01050FA2_0322.pdf
-
-
-
Upute za ugradnju (EA)
Cover for housing T13 electronic compartment Installation instruction
Liquiphant M/S, Soliphant M, Liquicap M, Solicap M/S
EN HR 11/08/201409/08/2012Jezik:
English
Verzije:
11/08/2014
Veličina datoteke:
164.3 KB
Naziv datoteke:
EA01048FA2_0214.pdf
-
-
-
Upute za ugradnju (EA)
Cover for housing F27 Installation instruction
Liquihant M/S, Soliphant M, Liquicap M, Solicap M/S
EN HR 11/08/201416/01/201409/08/2012Jezik:
English
Verzije:
11/08/2014
Veličina datoteke:
136.4 KB
Naziv datoteke:
EA01047FA2_0314.pdf
-
-
-
Upute za ugradnju (EA)
Cover for housing F13 Installation instruction
Liquiphant M/S, SoliphantM, Liquicap M, Solicap M/S
EN HR 11/08/201409/08/2012Jezik:
English
Verzije:
11/08/2014
Veličina datoteke:
134.4 KB
Naziv datoteke:
EA01046FA2_0214.pdf
-
-
-
Upute za ugradnju (EA)
Cover for housing T13 electronic compartment with sight glas Installation instruction
Liquicap M, Solicap M, Liquphant M/S/FailSafe, Soliphant M
EN HR 09/08/2012Jezik:
English
Verzije:
09/08/2012
Veličina datoteke:
158.7 KB
Naziv datoteke:
EA01049FA2_01.12.pdf
-
Pretražite rezervne dijelove prema broju na crtežu
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Cover F13 Ex Alu, gasket
-
Cover
Broj crtežaNarudžbeni kod2052002698 -
-
Cover F17 Alu, gasket
-
Cover
Broj crtežaNarudžbeni kod2052002699 -
-
Cover T13 Alu, gasket EPDM
-
Cover
Broj crtežaNarudžbeni kod2052006903 -
-
Cover F16 grey, PBTP, gasket
-
Cover
Broj crtežaNarudžbeni kod2052025606 -
-
Cover F15 316L, gasket
-
Cover
Broj crtežaNarudžbeni kod2052027000 -
-
Cover T13 "Terminal" Alu, gasket EPDM
-
Cover
Broj crtežaNarudžbeni kod2552007103 -
-
O-ring 71.0x3.55 EPDM, 5 pieces
-
Sealing
Broj crtežaNarudžbeni kod2152004137 -
-
Sealing set EPDM,cover F13/17/18/27,10pc
-
Sealing
Broj crtežaNarudžbeni kod2152004277 -
-
Sealing set EPDM 73.0x3.0, 10 pieces
-
Sealing
Broj crtežaNarudžbeni kod2152008495 -
-
Gasket 67.5x2.9x1.5 VMQ/PTFE, 5 pieces
-
Sealing
Broj crtežaNarudžbeni kod2152028179 -
-
Cable F15/F16/F17 separate, FTIxx
-
further parts
Narudžbeni kod71084478 -
-
Electronics FEI54, relay DPDT, AC/DC
-
Electronic
Broj crtežaNarudžbeni kod3071025814 -
-
Electronics FEI55, 8/16mA, 11-36VDC
-
Electronic
Broj crtežaNarudžbeni kod3071025815 -
-
Electronics FEI57S, 2-wire PFM
-
Electronic
Broj crtežaNarudžbeni kod3071025816 -
-
Electronics FEI52, PNP, 10-55VDC
-
Electronic
Broj crtežaNarudžbeni kod3071025819 -
-
Electronics FEI53, 3-12V, signal
-
Electronic
Broj crtežaNarudžbeni kod3071025820 -
-
Electronics FEI51, 19-253VAC
-
Electronic
Broj crtežaNarudžbeni kod3071042887 -
-
Electronics FEI58 Namur
-
Electronic
Broj crtežaNarudžbeni kod3071100895 -
-
Mounting set (2"/pipe 38_V4A
-
further parts
Narudžbeni kod919806-1000 -
-
Sealing ring G1, 33x39 FA, 5 pcs.
-
further parts
Broj crtežaNarudžbeni kod5752014048 -
-
Sealing ring G1-1/2, 48x55 FA, 5 pcs.
-
further parts
Broj crtežaNarudžbeni kod5752014047 -
-
Weather protection cover F13/F17/F18/F27
Narudžbeni kod71040497 -
Protection cover F16 housing
Narudžbeni kod71127760
