Kratke specifikacije
-
Max. measurement error
Volume flow:
- ± 0.5 % o.r. ± 0.02% o.f.s. for 0.5 to 10 m/s (1.6 to 33 ft/s)
- ± 0.07 % o.f.s. for flow velocities < 0.5 m/s (1.64 ft/s) -
Measuring range
0.025 to 5 m/s (0.02 to 16.4 ft/s)
0 to 6360 dm3/min (0 to 1680 gal/min) -
Medium temperature range
0 to 150° (17.8 to 302 °F)
-
Max. process pressure
PN 25 / ASME Cl. 150
-
Wetted materials
Measuring tube: 1.4301 (F304)
Process Connection: 1.4571; 1.4404 (F316L); 1.0038 (S235JR); 1,4306 (F304L); 1.4307 (F304L); A105
Područje primjene

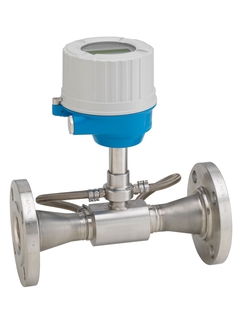

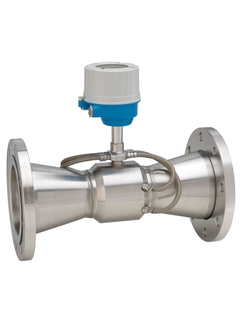

Measuring of demineralized water in utilities, for example in boiler condensate return lines, requires reliable devices. Prosonic Flow E 100 provides economical and accurate bidirectional flow measurement across all industries. With its integrated temperature measurement, Prosonic Flow E 100 proves to be a multivariable flowmeter for considerable additional value in your plant. Heartbeat Technology enables measurement reliability and extension of recalibration cycles.
The measuring principle is independent of pressure, density, temperature and conductivity
Bidirectional measuring of demineralized water applications for utilities, e.g. boiler condensate return lines
Device properties:
Accuracy up to ±0.5 % (flow) or acc. to EN 1434 Cl. 2, ±2.0 °C (± 3.6 °F) (temp.)
Process temperatures up to 150 °C (302 °F)
Entire meter housing made of stainless steel
4-20 mA HART, pulse/frequency output
Local display for reading and monitoring available
Robust transmitter housing
Prednosti
Long-term stability – reliable, robust sensor
Reducing further measuring point – multivariable device
Dependable flow measurement – high turndown (200:1)
Time-saving local operation without additional software and hardware – integrated web server
Extended calibration intervals – integrated device verification due to Heartbeat Technology
Easy commissioning – brief parameter explanations
Videozapisi
Extended odabir
-
Vrhunski proizvodi
- Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
| FLEX odabir | Tehnička izvrsnost | Jednostavnost |
|---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
Loading alternative products
Uspješne priče
%20-%20CS01637X.jpg "Picture of the water reservoir Marbach (Germany)")
56 dokumenti
-
-
Tehničke informacije (TI)
Proline Prosonic Flow E 100
Ultrasonic time-of-flight flowmeter
EN HR 18/06/202001/11/201902/07/201801/12/2017Jezik:
English
Verzije:
18/06/2020
Veličina datoteke:
2.5 MB
Naziv datoteke:
TI01345DEN_0420.pdf
-
-
-
Upute za uporabu (BA)
Proline Prosonic Flow E 100 HART
Ultrasonic time-of-flight flowmeter
EN HR 18/06/202001/11/201901/12/2017Jezik:
English
Verzije:
18/06/2020
Veličina datoteke:
5 MB
Naziv datoteke:
BA01769DEN_0320.pdf
-
-
-
Parametri uređaja (GP)
Proline Prosonic Flow 100 HART Description of Device Parameters
Ultrasonic time-of-flight flowmeter
EN HR 01/12/2017Jezik:
English
Verzije:
01/12/2017
Veličina datoteke:
1.6 MB
Naziv datoteke:
GP01124DEN_0117.pdf
-
-
-
Kratke upute (KA)
Proline 100 HART
Transmitter with ultrasonic time-of-flight sensor
EN HR 18/06/202001/12/2017Jezik:
English
Verzije:
18/06/2020
Veličina datoteke:
2.5 MB
Naziv datoteke:
KA01330DEN_0220.pdf
-
-
-
Kratke upute (KA)
Proline Prosonic Flow E Brief Operating Instructions
Proline Prosonic Flow E
Ultrasonic time-of-flight sensorEN HR 01/12/2017Jezik:
English
Verzije:
01/12/2017
Veličina datoteke:
580.1 KB
Naziv datoteke:
KA01329DEN_0117.pdf
-
-
-
Upute za ugradnju (EA)
Replacing Display module, non Ex, Zone 2, Class 1 Div. 2 Installation Instructions
Promass 100, Promag 100, Prosonic Flow E 100
EN HR 01/12/201708/10/2014Jezik:
English
Verzije:
01/12/2017
Veličina datoteke:
340.9 KB
Naziv datoteke:
EA01109DA2_0217.pdf
-
-
-
Upute za ugradnju (EA)
EA Replacing Small parts
Proline 10, 100, 400, 800 Index C, 500, 500-digital, CNG-, LNG-, LPGmass
EN HR 01/01/202401/05/202101/04/202131/07/202002/08/2019Jezik:
English
Verzije:
01/01/2024
Veličina datoteke:
518.1 KB
Naziv datoteke:
EA01119DA2_0923-00.pdf
-
-
-
Upute za ugradnju (EA)
Replacing the Electronics Module
Prosonic Flow E 100, Prosonic Flow E Heat
EN HR 01/07/202004/06/201801/12/2017Jezik:
English
Verzije:
01/07/2020
Veličina datoteke:
604.1 KB
Naziv datoteke:
EA01219DA2_0320.pdf
-
-
-
Upute za ugradnju (EA)
Activating application packages
Promag 100, 200, 400, Promass 100, 200, Prosonic Flow 100, 200, Prowirl
200, t-mass 150EN HR 03/03/202015/02/2019Jezik:
English
Verzije:
03/03/2020
Veličina datoteke:
406.9 KB
Naziv datoteke:
EA01249DA2_0220.pdf
-
-
-
Upute za ugradnju (EA)
EA Replacing Spare Parts
CNG-, LNG-, LPGmass, Proline 100, 300, 400 Index C, 500, 500-digital
EN HR 01/01/202415/12/202101/06/202101/06/202002/08/2019Jezik:
English
Verzije:
01/01/2024
Veličina datoteke:
1.9 MB
Naziv datoteke:
EA01018DA2_1523-00.pdf
-
Pretražite rezervne dijelove prema broju na crtežu
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
Kit T-DAT, 100/300/400/500
-
Memory
Broj crtežaNarudžbeni kod3971185788 -
-
Electronic Prosonic Flow E 100
-
Electronic
Broj crtežaNarudžbeni kod30XPD0041- -
-
Display module, 4-wire, 100
-
Display
Broj crtežaNarudžbeni kod50XPD0023- -
-
Kit cover, compact, Alu
-
Cover
Broj crtežaNarudžbeni kod2171185789 -
-
Kit cover, compact, stainless 1.4301
-
Cover
Broj crtežaNarudžbeni kod2171185790 -
-
Kit cover, sight glass, compact, Alu
-
Cover
Broj crtežaNarudžbeni kod2071266334 -
-
Kit cover, sight glass, compact, 1.4301
-
Cover
Broj crtežaNarudžbeni kod2071266335 -
-
Kit housing gaskets, compact, Alu
-
Sealing
Broj crtežaNarudžbeni kod7071185795 -
-
Kit housing gaskets, compact, stainless
-
Sealing
Broj crtežaNarudžbeni kod7071185797 -
-
Kit 10 cable glands M20x1.5 Ex
-
Adapter housing/cable entry
Broj crtežaNarudžbeni kod1550098036 -
-
Kit 2 cable glands M20x1.5 INOX Ex
-
Adapter housing/cable entry
Broj crtežaNarudžbeni kod1571069285 -
-
Kit 10 ext. M20x1.5/G 1/2" (plug PVC)
-
Adapter housing/cable entry
Broj crtežaNarudžbeni kod1550098041 -
-
Kit 2 cable glands G1/2" INOX Ex
-
Adapter housing/cable entry
Broj crtežaNarudžbeni kod1571185802 -
-
Kit 10 ext. M20x1.5/NPT 1/2" (plug PVC)
-
Adapter housing/cable entry
Broj crtežaNarudžbeni kod1550098042 -
-
Kit 2 cable glands NPT1/2" INOX Ex
-
Adapter housing/cable entry
Broj crtežaNarudžbeni kod1571185800 -
-
Kit securing clamp, screw
-
Housing/housing accessories
Broj crtežaNarudžbeni kod1271276494 -
-
Spare RFID TAG
-
further parts
Narudžbeni kodXPRFID- -
-
Spare IEC TAG
-
further parts
Narudžbeni kodXPSPEC- -
