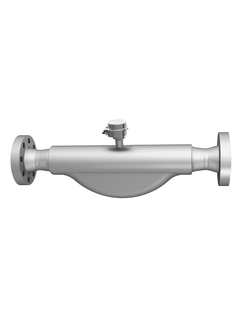

Picture of Coriolis flowmeter Proline Promass O 100 / 8O1B for the oil and gas industry

Proline Promass O 100
Coriolis flowmeter

The robust high-pressure flowmeter with an ultra-compact transmitter

8O1B
Učitavanje cijene
Cijene privremeno nisu dostupne

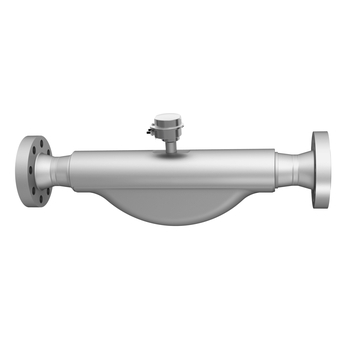

Picture of Coriolis flowmeter Proline Promass O 100 / 8O1B for the oil and gas industry
  • F
  • L
  • E
  • X
©Endress+Hauser

Proline Promass O 100 for the oil and gas industry

Proline Promass O 100 for the oil and gas industry

Heartbeat Technology

Kratke specifikacije

  • Max. measurement error

    Mass flow (liquid): ±0.1 (standard), 0.05 % (option)
    Volume flow (liquid): ±0.1 %
    Mass flow (gas): ±0.35 %
    Density (liquid): ±0.0005 g/cm³

  • Measuring range

    0 to 800 000 kg/h (0 to 29 400 lb/min)

  • Medium temperature range

    –40 to +205 °C (–40 to +401 °F)

  • Max. process pressure

    PN 250, Class 1500

  • Wetted materials

    Measuring tube: 25Cr duplex (Super Duplex), 1.4410 (UNS S32750) Connection: 25Cr duplex (Super Duplex), 1.4410 (F53)
    Measuring tube: 1.4539 (904L)
    Connection

Područje primjene

Promass O is designed for premium accuracy of liquids and gases at the highest process pressures in the oil and gas industry. The sensor is fully suitable for offshore conditions and resistant to stress corrosion cracking. Promass O 100 delivers full performance on the smallest footprint with its ultra-compact transmitter and thus enables seamless system integration. Heartbeat Technology enables process safety at all times.

  • Measuring principle operates independently of physical fluid properties such as viscosity or density

  • For premium accuracy at highest process pressures, fully suitable for offshore conditions

Device properties

  • Measuring tube in 25Cr Duplex, 1.4410 (UNS S32750)

  • Process pressure up to PN 250 (Class 1500)

  • Nominal diameter: DN 80 to 150 (3 to 6")

  • Robust, ultra-compact transmitter housing

  • High ingress protection: IP69K

  • Local display available

Prednosti

  • Maximum safety – highest resistance to stress corrosion cracking

  • Fewer process measuring points – multivariable measurement (flow, density, temperature)

  • Space-saving installation – no in/outlet run needs

  • Space-saving transmitter – full functionality on the smallest footprint

  • Time-saving local operation without additional software and hardware – integrated web server

  • Integrated verification – Heartbeat Technology

Videozapisi

  • Introduction of Proline Web server

  • The Coriolis Flow Measuring Principle

  • Heartbeat Technology
    Smart instrumentation through Heartbeat Technology

    You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.
