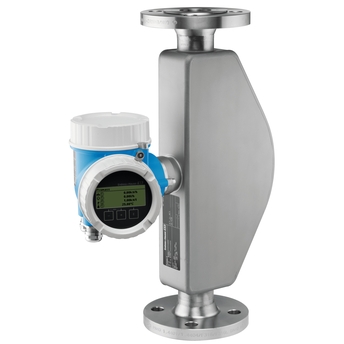

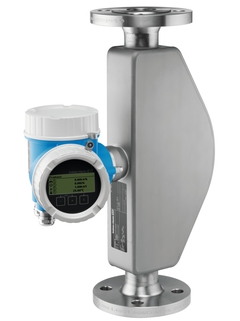

Proline Promass E 200 / 8E2B

Genuine loop-powered flowmeter for minimized cost of ownership.
Accurate measurement of liquids and gases for a wide range of standard applications.

Cost‐effective – multi‐purpose device; an alternative to conventional volumetric flowmeters. Fewer process measuring points – multivariable measurement (flow, density, temperature). Space‐saving installation – no in-/outlet run needs.
Compact dual-tube sensor. std_successorproducts_product_differentiating_tech_features_7694_1530102815. Process pressure up to 100 bar (1450 psi).

Convenient device wiring – separate connection compartment. Safe operation – no need to open the device due to display with touch control, background lighting. Integrated verification – Heartbeat Technology.
Loop-powered technology. Robust dual-compartment housing. Plant safety: worldwide approvals (SIL, Haz. area).

DN 8 to 50 (⅜ to 2")

Measuring tube: 1.4539 (904L)
Connection: 1.4404 (316/316L)

Mass flow, density, temperature, volume flow, corrected volume flow, reference density

Mass flow (liquid): ±0.25 %
Volume flow (liquid): ±0.25 %
Mass flow (gas): ±0.75 %
Density (liquid): ±0.0005 g/cm³

0 to 70 000 kg/h (0 to 2570 lb/min)

PN 100, Class 600, 63K

–40 to +140 °C (–40 to +284 °F)

–40 to +60 °C (–40 to +140 °F)

1.4301 (304), corrosion resistant

AlSi10Mg, coated

IP66/67, type 4X enclosure

4‐line backlit display with touch control
(operation from outside)
Configuration via local display and operating tools possible
Remote display available

4‐20 mA HART (passive)
4‐20 mA (passive)
Pulse/frequency/switch output (passive)

None

HART, PROFIBUS PA, FOUNDATION Fieldbus

DC 18 to 35 V (4‐20 mA HART with/without
pulse/frequency/switch)
DC 18 to 30 V (20 mA HART, 4‐20 mA)
DC 9 to 32 V (PROFIBUS PA)

ATEX, IECEx, cCSAus, NEPSI, INMETRO

3.1 material, calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025), NAMUR, SIL, PED, CRN, 3-A

Functional safety according to IEC 61508, applicable in safety-relevant applications in accordance with IEC 61511

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)

PED, CRN

3.1 material

3-A
