Kratke specifikacije
-
Max. process pressure (static)
1 bar (15 psi)
-
Maximum standard immersion length
1.500 mm (59,06")
-
Max. immersion length on request
4.000 mm (157,48")
Područje primjene

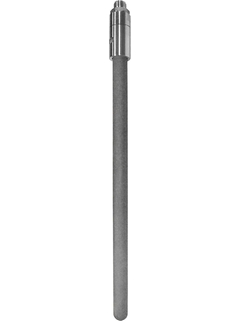

Measuring points with extremely high process temperatures require these special ceramic protection tubes. Made from special materials, it serves as protection from mechanical and chemical damages in the process and increases the life span of the used sensors. This leads to: Cost savings for maintenance of the measuring point, quality improvements of the products and increased plant safety. It is designed as replacement part for the high temperature TC thermometer TAF11 by Endress+Hauser.
Applicable for steel treatment (annealing), concrete furnaces and primaries. Accessory for high temperature assembly TAF11.
Process temperatures up to +1600 °C (+2912 °F).
Prednosti
Long lifetime by usage of innovative protection tube materials with increased wear and chemical resistance
Long term stable measurement due to sensor protection with non-porous materials
Replaceable parts
