Kratke specifikacije
-
Accuracy
class A acc. to IEC 60751
-
Response time
t50 = 1 s
t90 = 1.5 s -
Max. process pressure (static)
at 20 °C: 50 bar (725 psi)
-
Operating temperature range
PT 100:
-50 °C ...200 °C
(-58 °F ...392 °F) -
Max. immersion length on request
up to 600,00 mm (23,62'')
Područje primjene

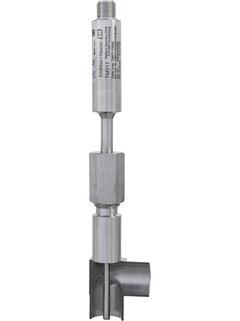

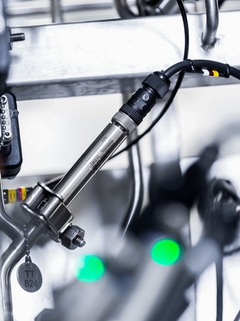

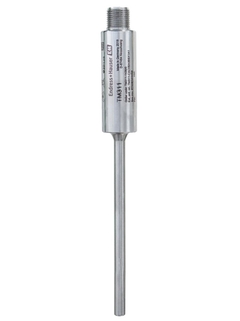

iTHERM CompactLine TM311 sanitary thermometer provides accurate and fast process temperature measurements in hygienic and aseptic applications. Its temperature sensor offers a 4-wire connection or feeds into a smart temperature transmitter with 4 to 20 mA, IO-Link (auto-detect) or switch output. Featuring TipSens technology, the RTD (Pt100; Class A) delivers response times as low as 1.5 s (t90) for optimum process control. This versatile device is a great choice to drive plant standardization.
Developed for universal use in sterile applications
High standardization potential for skid builders, machine and plant manufacturers
Measuring range: -50 to 200 °C (-58 to 392 °F)
Pressure range: Up to 50 bar (725 psi)
Protection class: IP69
Output: Pt100 (4-wire connection); IO-Link, 4 to 20 mA, 1x PNP switch
International approvals: 3-A, EHEDG, ASME BPE, FDA, EC 1935/2004, EN 2023/2006, TSE/ADI, GB4806-2016, GB9685-2016; Marine approval acc. to DNV GL
Prednosti
Fast installation and easy commissioning:
- Compact dimensions for installation in tight spaces
- Standard M12 connector with IP69 for easy electrical connection
- Recommended process immersion lengths for optimum measurement
- Preset temperature rangeExcellent temperature measurement performance:
- Short response times as low as 1.5 s (t90)
- High sensor accuracy even with short immersion lengths
- Improved measuring accuracy with transmitter-sensor matchingSafe and reliable operation:
- Device safety to EN 610101-1 and CSA C/US
- Electromagnetic compatibility (NAMUR NE 21)
- Device diagnostic information (NAMUR NE 43)
- Hygienic design manufactured from high-grade stainless steel
- Marine approval
Videozapisi
Fundamental odabir
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
| FLEX odabir | Tehnička izvrsnost | Jednostavnost |
|---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
Loading alternative products
Uspješne priče
Također vas može interesirati
Najviše preuzimano
-
-
Tehničke informacije (TI)
iTHERM CompactLine TM311
Engleska verzija - 10/2022
Compact thermometer, Pt100, 4-wire connection, class A Optionally with integrated IO-Link and 4 to 20 mA transmitter, PC programmable
EN HR 31/10/202231/03/202230/06/202001/04/2019Jezik:
English
Verzije:
31/10/2022
Veličina datoteke:
1.4 MB
Naziv datoteke:
TI01439TEN_0422-00.pdf
-
31 dokumenti
-
-
Tehničke informacije (TI)
TI Weld-in adapter, process adapter and flanges
Level, pressure and temperature measurement
EN HR 25/03/202415/09/202328/10/202130/07/202119/06/2020Jezik:
English
Verzije:
25/03/2024
Veličina datoteke:
1.1 MB
Naziv datoteke:
TI00426FEN_2524.pdf
-
-
-
Tehničke informacije (TI)
iTHERM CompactLine TM311
Compact thermometer, Pt100, 4-wire connection, class A
Optionally with integrated IO-Link and 4 to 20 mA transmitter, PC
programmableEN HR 31/10/202231/03/202230/06/202001/04/2019Jezik:
English
Verzije:
31/10/2022
Veličina datoteke:
1.4 MB
Naziv datoteke:
TI01439TEN_0422-00.pdf
-
-
-
Upute za uporabu (BA)
iTHERM CompactLine TM311
Compact thermometer with IO-Link
EN HR 31/10/202231/03/202229/06/202002/09/2019Jezik:
English
Verzije:
31/10/2022
Veličina datoteke:
1.7 MB
Naziv datoteke:
BA01952TEN_0422-00.pdf
-
-
-
Kratke upute (KA)
iTHERM CompactLine TM311
Kompaktni termometar s IO-vezom
EN HR 22/06/202012/08/2019Jezik:
Croatian
Verzije:
22/06/2020
Veličina datoteke:
539.1 KB
Naziv datoteke:
KA01437THR_0220.pdf
-
-
-
Specijalna dokumentacija (SD)
Device viewer
Technical documentation in other languages
Jezik:
English
Verzije:
14/07/2021
Veličina datoteke:
478.5 KB
Naziv datoteke:
SD02429R09EN_0121.pdf
-
-
-
Specijalna dokumentacija (SD)
SD Hygienic process connection types
Supplement to TM311, TM371, TM372, TM401, TM411, TM402, TM412, TT411,
TT412, TE411, TK40, TMR35, DTT35, TTR35Jezik:
English
Verzije:
15/09/2023
Veličina datoteke:
800.3 KB
Naziv datoteke:
SD03119TEN_0123-00.pdf
-
-
-
PU (publikacija)
Misura della temperatura e componenti di sistema per i settori alimentare e farmaceutico.
Misura della temperatura e componenti di sistema per i settori
alimentare e
farmaceutico.
La nuova frontiera dell'igiene: un'offerta complete per applicazioni
igieniche e asetticheJezik:
Italian
Verzije:
10/01/2020
Veličina datoteke:
11.2 MB
Naziv datoteke:
EH_Booklet COMPLETO.pdf
-
-
-
Brošura kompetencija (CP)
The ideal device for each industry
Temperature and system products from Endress+Hauser
Jezik:
English
Verzije:
30/11/2023
Veličina datoteke:
1.9 MB
Naziv datoteke:
CP01556T Industry Fan.pdf
-
-
-
Brošura kompetencija (CP)
Das ideale Gerät für jede Branche
Temperatur- und Systemprodukte von Endress+Hauser
Jezik:
German
Verzije:
09/01/2024
Veličina datoteke:
1.9 MB
Naziv datoteke:
CP01556T Industry Fan.pdf
-
-
-
Bijeli papir (WP)
Ease instrument commissioning and enhance maintenance with IO-Link
Empowered with simple configuration, cost-effective
implementation, and comprehensive diagnostics,
plant personnel — especially in the food & beverage
industry — are leveraging IO-Link-enabled digital
instruments and sensors to create insightsJezik:
English
Verzije:
31/01/2024
Veličina datoteke:
2.9 MB
Naziv datoteke:
WP01201B24EN012400 - PlantServices-RemoteMonitor.pdf
-
Pretražite rezervne dijelove prema broju na crtežu
60 spare parts & accessories
60 spare parts & accessories
60 spare parts & accessories
-
O-ring 14.9x2.7 VMQ, FDA, 5 pcs.
-
further parts
Narudžbeni kod52021717 -
-
O-ring 21.89x2.62 VMQ, FDA, 5 pcs.
-
further parts
Narudžbeni kod52014473 -
-
O-ring 28.17x3.53 VMQ, FDA, 5 pcs.
-
further parts
Narudžbeni kod52014472 -
-
Profile gasket 29x36x3.7, FDA, 5 pcs.
-
further parts
Narudžbeni kod52014424 -
-
iTHERM TT411 Thermowell
-
further parts
Narudžbeni kodTT411- -
-
iTHERM CompactLine TM311
-
further parts
Narudžbeni kodTM311- -
-
Collar welded socket d6 PEEK + screw
Narudžbeni kod71535690 -
Collar welded socket d6 PEEK w/o screw
Narudžbeni kod71535691 -
plug screw fitting G1/2 1.4435
Narudžbeni kod60022519 -
Weld in adapter M12x1.5 1.4435/316L
Narudžbeni kod71405560 -
G1/2 metal to metal weld in adapter
Narudžbeni kod71424800 -
Plug screw fitting 316L M12x1.5
Narudžbeni kod71535692 -
Weld-in adapter G3/4 d=50, 316L, 3.1
Narudžbeni kod52018765 -
Weld-in adapter G3/4, d=29, 316L, 3.1
Narudžbeni kod52028295 -
Weld-in adapter G3/4, d=55, 316L
Narudžbeni kod52001052 -
Weld-in adapter G3/4, 316L, 3.1
Narudžbeni kod52011897 -
Weld-in adapter G1, d=53, 316L, 3.1
Narudžbeni kod71093129 -
Weld-in adapter G1, d=60, 316L
Narudžbeni kod52001051 -
Weld-in adapter G1, d=60, 316L, 3.1
Narudžbeni kod52011896 -
Weld-in adapter G1, adjustable, 316L
Narudžbeni kod52001221 -
Weld-in adapter G1, adjustable,316L, 3.1
Narudžbeni kod52011898 -
Adapter cable, PIN, TM311 to TMR3x
Narudžbeni kod71449142 -
Cordset 4p D18 IP69K
Narudžbeni kod71217708 -
Cable connector M12 IP69k 5m
Narudžbeni kod71589963 -
M12 elbow plug ready for cable, IP67,PG7
Narudžbeni kod71535693 -
Compression Fitting TK40
Narudžbeni kodTK40-
