Kratke specifikacije
-
Accuracy
Class AA acc. to IEC 60751
Class A acc. to IEC 60751
Class B acc. to IEC 60751
Class special or standard acc. to ASTM E230
Class 1 or 2 acc. to IEC 60584-2 -
Response time
depending on configuration
-
Max. process pressure (static)
depending on the configuration up to 500 bar
-
Operating temperature range
PT100 TF iTHERM StrongSens:
-50 °C ...500 °C
(-58 °F ...932 °F)
PT100 TF iTHERM QuickSens:
-50 °C …200 °C
(-58 °F …392 °F)
PT100 WW:
-200 °C ...600 °C
(-328 °F ...1.112 °F)
PT100 basic TF:
-50 °C ...200 °C
(-58 °F ...392 °F)
Typ K:
max. 1.100 °C
(max. 2.012 °F)
Typ J:
max. 800 °C
(max. 1.472 °F)
Typ N:
max. 1.100 °C
(max. 2.012 °F) -
Max. immersion length on request
84"
Područje primjene

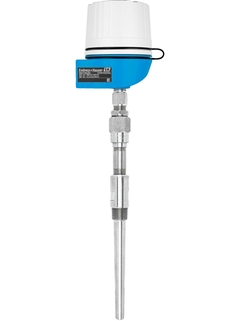

The modular industrial RTD or TC thermometer iTHERM ModuLine TM152 is complete with barstock thermowell or to be used with onsite thermowell. It is suitable for every application, from basic functionality to high-end performance in the chemical, oil & gas and power & energy industries.
For universal use
Measuring range: –200 to +1 100 °C (–328 to +2 012 °F)
Pressure range: up to 500 bar (7 252 psi)
Prednosti
Easy maintenance and recalibration of the thermometer (sensor can be replaced without interrupting the process)
Dual Seal technology: second process seal with failure indication offers valuable device health status information
iTHERM QuickSens: fastest response times of 1.5 s for optimum process control
iTHERM StrongSens: unsurpassed vibration resistance (>60g) for ultimate plant safety
iTHERM QuickNeck: cost and time savings thanks to simple, tool-free removal for recalibration
International certification: e.g. explosion protection in accordance with ATEX, IECEx, CSA and INMETRO; functional safety (SIL)
iTEMP temperature transmitter with all common communication protocols and optional Bluetooth® connectivity
Extended odabir
-
Vrhunski proizvodi
- Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost

-
Jednostavni proizvodi
- Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
-
Standardni proizvodi
- Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
-
Specijalizirani proizvodi
- Dizajnirano za zahtjevne aplikacije
Tehnička izvrsnost
Jednostavnost
Promjenjivo
FLEX odabir | Tehnička izvrsnost | Jednostavnost |
---|---|---|
Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju |
Tehnička izvrsnost
|
Jednostavnost
|
Lean odabir Jednostavno upravljajte svojim osnovnim procesima |
Tehnička izvrsnost
|
Jednostavnost
|
Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama |
Tehnička izvrsnost
|
Jednostavnost
|
Xpert odabir Ovladajte svojim najizazovnijim aplikacijama |
Tehnička izvrsnost
|
Jednostavnost
Promjenjivo |
-
-
Tehničke informacije (TI)
TI iTHERM ModuLine TM152
Industrial modular thermometer
EN HR 10/06/2024Jezik:
English
Verzije:
10/06/2024
Veličina datoteke:
3.3 MB
Naziv datoteke:
TI01794TEN_0124-00.pdf
-
-
-
Upute za uporabu (BA)
BA iTHERM ModuLine termometar
Univerzalni, modularni RTD/TC termometri za široki niz industrijskih primjena
EN HR 30/11/202431/08/2018Jezik:
Croatian
Verzije:
30/11/2024
Veličina datoteke:
803.5 KB
Naziv datoteke:
BA01915THR_0224-00.pdf
-
-
-
Ex sigurnosne upute (XA)
iTHERM TM111, TM131 Control drawing CSA IS, NI, DIP
Thermometer
Installation Notes for hazardous locations
Intrinsically safe, Nonincendive, Dust ignition proofJezik:
English
Verzije:
17/09/2024
Veličina datoteke:
449.6 KB
Naziv datoteke:
XA01976TEN_05.24.pdf
-
-
-
Ex sigurnosne upute (XA)
TM111, TM131, TM611: cCSAus XP DIP NI
TM111, TM131: cCSAus XP DIP NI
Jezik:
English
Verzije:
27/01/2025
Veličina datoteke:
1.7 MB
Naziv datoteke:
XA01961T_04.25.pdf
-
-
-
Ex sigurnosne upute (XA)
XA iTHERM TM111, TM112, TM131, TM151, TM152, TS111, TS211, TS212
Thermometers and inserts
Ex ia IIC T1...T6 Ga
Ex ia IIC T1...T6 Ga/Gb
Ex ia IIIC T<sub>200</sub>85 °C...T<sub>200
</sub>450 °C Da/DbEN HR 12/07/202428/06/202327/04/202331/10/202231/07/2020Jezik:
English
Verzije:
12/07/2024
Veličina datoteke:
578 KB
Naziv datoteke:
XA02110TEN_0524-00.pdf
-
-
-
Inovacija (IN)
Komplexität reduzieren, Einfachheit erreichen.
iTHERM ModuLine – einfach konfigurierbar für Ihre Bedürfnisse.
Jezik:
German
Verzije:
25/02/2025
Veličina datoteke:
2 MB
Naziv datoteke:
IN01360T09DE.pdf
-
-
-
Inovacija (IN)
Reduce complexity, achieve simplicity.
iTHERM ModuLine — easily configurable
to your needs.Jezik:
English
Verzije:
17/12/2024
Veličina datoteke:
2 MB
Naziv datoteke:
IN01360T09EN.pdf
-
-
-
Izjava proizvođača
Product family: Process RTD general purpose
Product root: TM101-, TM111-, TM112-, TM121-, TM131-, TM151-, TM152-
Declaration number: TM1X1 SUPPLIERS DOC
Manufacturer specification: RoHS, Explosion protection, EMC
Additional information: ACMA, AustraliaJezik:
English
Verzije:
12/04/2024
Veličina datoteke:
149.4 KB
Naziv datoteke:
TM1x1 Suppliers Dec of Conformity_240412.pdf
-
-
-
EU deklaracija
Product family: Low cost RTD general purpose, Process RTD direct contact, Process RTD direct in contact, Process RTD general purpose , Process RTD heavy duty, Process RTD hygienic, Process TC direct contact, Process TC direct in contact, Process TC general purpose, Process TC heavy duty, RTD thermometer, TC heavy duty
Product root: TAF11-, TAF12D-, TAF12S-, TAF12T-, TAF16-, TC10-, TC12-, TC13-, TC15-, TC61-, TC62-, TC63-, TC65-, TC66-, TC88-, TEC42
0-, TH11-, TH12-, TH13-, TH14-, TH15-, TH17-, TH18-, TH27-, TH51-, TH52-, TH53-, TH54-, TH55-, TH56-, TM101-, TM111-, TM112-, TM121-
, TM131-, TM151-, TM152-, TM401-, TM402-, TM411-, TM412-, TM611-, TMT142C-, TMT142R-, TMT162C-, TMT162R-, TR10-, TR11-, TR12-, TR13-
, TR15-, TR24-, TR25-, TR44-, TR45-, TR46-, TR47-, TR48-, TR61-, TR62-, TR63-, TR65-, TR66-, TR88-, TSC310-, TSM187-, TSM487-, TST18
7-, TST310-, TST40N-, TST410-, TST414-, TST41N-, TST434-, TST434B-, TST487-, TST602-, TST90-
Declaration number: EC_00136_04.24EN HR 20/02/2024Jezik:
English
Verzije:
20/02/2024
Veličina datoteke:
150.6 KB
Naziv datoteke:
EC_00136_04.24.pdf
-
-
-
Zaštita od eksplozije
Product family: Accessories: Inserts, Process RTD general purpose
Product root: TM111-, TM112-, TM131-, TM151-, TM152-, TS111-, TS211-, TS212-
Region: Brazil
Approval agency: TÜV
Protection: Ex ia IIC T6...T1 Ga, Ex ia IIC T6...T1 Ga/Gb, Ex ia IIIC Txxx°C Da/DbJezik:
Portuguese
Verzije:
25/09/2024
Veličina datoteke:
1.6 MB
Naziv datoteke:
TUEV 24.0326 X_TUEV 23.1174 X.pdf
-
