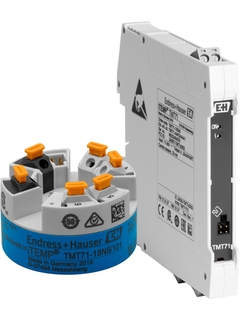

Product picture temperature transmitter iTEMP TMT71

iTEMP TMT71 temperature transmitter

Name: iTEMP TMT71
Brand: Endress+Hauser
Availability: InStock

4-20 mA temperature transmitter as head, field or DIN rail device with one universal sensor input suitable for use in hazardous areas

TMT71

Usporedite

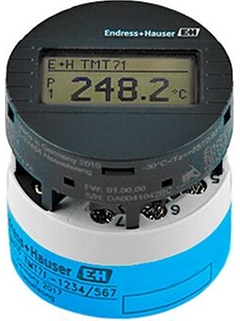

Product picture temperature transmitter TMT71 with TID10 — Temperature transmitter with pluggable display TID10

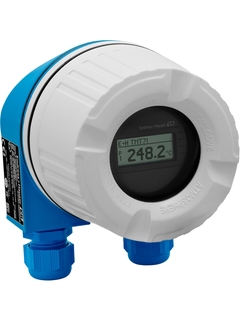

Product picture temperature transmitter TMT71 installed in field housing TA30H — Temperature transmitter installed in a explosion protected field housing

Kratke specifikacije

Accuracy

(Pt100, -50...200 °C) <= 0,1 K
(Pt100, -58...392 °F) <= 0,18 °F

Prikaži sve specifikacije

Područje primjene

Unsurpassed reliability, accuracy and long-term stability in critical processes across all industries. The configurable transmitter transfers converted signals from RTD and thermocouple (TC) temperature probes, as well as resistance and voltage signals. The standardized 4 to 20 mA output signal is used for process measurement. Swift and easy commissioning, operation and maintenance via PC software or with integrated Bluetooth^® technology and Endress+Hauser SmartBlue App.

Bluetooth^®-enabled or PC programmable temperature transmitter for the conversion of various input signals into a scalable, analog 4 to 20 mA output signal
Improved process efficiency and increased plant uptime
Universal input for resistance thermometers (RTD), thermocouples (TC), resistance transmitters (Ω) and voltage transmitters (mV)
Installation in terminal head form B as per DIN EN 50446
Installation in cabinets with DIN rail housing
Optional installation in field housing for Ex d applications

Prednosti

Safe operation in hazardous areas thanks to international approvals
Reliable operation thanks to sensor and device monitoring
Integrated Bluetooth^® interface for the wireless display of measured values and configuration via Endress+Hauser SmartBlue App, optional
User-friendly guided user interface concept also on-site via Bluetooth^®
Available with plug-on display TID10
Diagnostics information according to NAMUR NE 107
