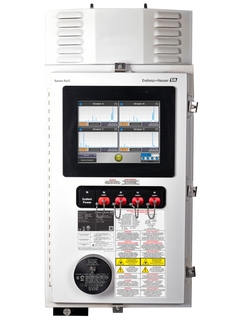

Raman Rxn5 analyzer
Područje primjene
The Raman Rxn5 process analyzer is an industry-leading, turn-key, laser-based analyzer powered by Kaiser Raman technology. It provides quantitative chemical composition measurements using Raman spectroscopy. The design of the Raman Rxn5 incorporates customer requirements for serviceability and hazard-area certification, provides a compact footprint, and minimizes utilities consumption. The high optical efficiency of the analyzer makes it ideal for typical gas-phase sample measurements.
Process measurement points:
Typical industries:
Prednosti
Non-destructive analysis of gases, including homonuclear diatomics (H2 , N2 , O2 )
Compact, smaller than most wall-mount gas chromatographs (GCs)
Can replace up to four traditional analyzers with a single base unit and four probes
Rugged with minimal utility requirements, no sample transport, and no consumables (columns, valves, gases, pumps)
Minimal analyzer technician time with maximum technician safety (no toxic gases are transported to the analyzer)
Measures four streams simultaneously for faster multi-channel results
-20 to +50 °C operating environment
Extended odabir
Vrhunski proizvodi
Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
©Endress+Hauser
Jednostavni proizvodi
Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
Standardni proizvodi
Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
Vrhunski proizvodi
Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
Tehnička izvrsnost
Jednostavnost
FLEX odabir
Tehnička izvrsnost
Jednostavnost
Fundamental odabir
Udovoljite svojim osnovnim potrebama u mjernju
Tehnička izvrsnost
Jednostavnost
Lean odabir
Jednostavno upravljajte svojim osnovnim procesima
Tehnička izvrsnost
Jednostavnost
Extended odabir
Optimizirajte svoje procese s inovativnim tehnologijama
Tehnička izvrsnost
Jednostavnost
Xpert odabir
Ovladajte svojim najizazovnijim aplikacijama
Tehnička izvrsnost
Jednostavnost
Loading alternative products
Uspješne priče
Measuring hydrogen quality in real time
Enapter uses optical analytical measurement technology from Endress+Hauser to determine the purity of hydrogen produced. Find out more!
Pročitajte cijelu priču
LNG: truck loading
Find out how to accurately measure the composition of LNG at truck loading with the use of a Raman Rxn4 analyzer.
Pročitajte cijelu priču
Također vas može interesirati
Temperature
Operating: -20 to 50 °C / -4 to 122 °F Recommended storage: -30 to 60 °C / -22 to 140 °F
Relative humidity
0 to 90 %, non-condensing
Input voltage
90-264 VAC, 47-63 Hz standard
Power consumption (W)
<300 (max) <300 (typical start-up) <200 (typical running)
Unit dimensions (width x height x depth)
457 x 834 x 254 mm 18.00 x 32.84 x 10.00 inch
Sampling probe compatibility
Installation options
IP 56 wall-mounted, sealed/purged enclosure
Hazardous area certifications
