CA76NA - Potentiometric sodium analyzer for the monitoring of boiler feedwater, steam, condensate

Sodium analyzer CA76NA

Potentiometric system for the monitoring of boiler feedwater, steam, condensate and ion exchangers

CA76NA
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-

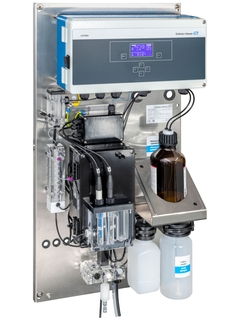

CA76NA - Potentiometric sodium analyzer for the monitoring of boiler feedwater, steam, condensate ©Endress+Hauser

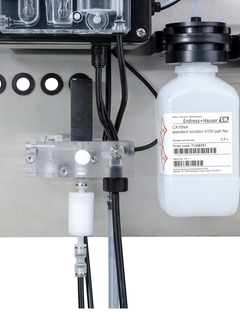

Multi-sequencer for up to 6 sample channels ©Endress+Hauser

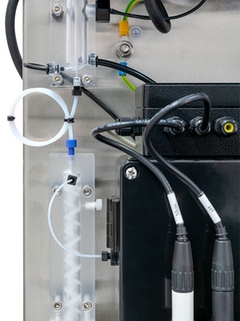

Flow-through cell with separate pH electrode ©Endress+Hauser

Kratke specifikacije

  • Measuring range

    0.1 to 9999 µg/l (ppb) Na

  • Process temperature

    10 to 40 °C
    (50 to 104 °F)

  • Process pressure

    1 to 5 bar (abs)
    14.5 to 72.5 psi

Područje primjene

Protect your water steam cycles and ion exchangers with the CA76NA sodium analyzer! An increase in sodium levels in high-purity or boiler feedwater indicates the presence of unwanted dissolved impurities. This can cause serious damage and consequently expensive repairs. CA76NA provides highly accurate online monitoring of water quality and enables fast detection of critical events. The sodium analyzer supports your preventive maintenance strategy to keep your power plant running.

The CA76NA sodium analyzer monitors low levels of sodium in the power industry and utilities:

  • Indication of the purity of water and steam used in boilers and turbines.

  • Provision of early warning for condenser leakages or malfunction of ion exchangers.

  • Control of the incoming water quality in power plants that use desalination plants as water source.

Prednosti

  • Protection of expensive plant equipments in the power industry: CA76NA sodium analyzer monitors low levels of sodium in water steam cycles detecting carryover and impurities in your power plant.

  • Early indication of condenser leaks via online sodium measurement after the condensate extraction pump.

  • Reduced operating costs thanks to low consumption of DIPA reagent and standard solution.

  • Precise measurement: Separate reference pH electrode for accurate temperature compensation and optimized pH value adjustment.

  • Optimized investment costs: One analyzer for up to six sample channels.

  • Perfect process adaptation: Individual selection of sample channels and freely adjustable measuring intervals.

Uspješne priče

  • SWAS analytical solution in a power plant SWAS analytical solution in a power plant

    Water/steam circuit at GETEC PARK.SWISS

    GETEC SWISS.PARK improves plant efficiency and decreases downtimes thanks to Endress+Hauser SWAS System

  • Baltic Sea water used as cooling water in the power station Baltic Sea water used as cooling water in the power station

    Cooling water directly from the Baltic Sea

    With the CUS52D, power plant operator KNG benefits from reduced maintenance costs due to reliable, stable measurement even under harsh conditions in salt water.

  • SWAS analytical panel for the water/steam cycle at the combined heat and power plant Zwickau Süd SWAS analytical panel for the water/steam cycle at the combined heat and power plant Zwickau Süd

    Keeping the turbine running

    Heizkraftwerk Zwickau Süd GmbH (HKWZS) has built a new biomass power plant to supply the city of Zwickau. The plant was equipped with state-of-the-art analytical solution SWAS.
