Guided radar measurement
Time-of-Flight
Levelflex FMP56

Economically efficient basis model for all level applications in bulk solids

FMP56

Usporedite

Kratke specifikacije

Accuracy

Rope probe: +/- 2 mm (0.08 in)
Process temperature

–40...+120 °C
(–40...+248 °F)
Process pressure / max. overpressure limit

Vacuum...16 bar
(Vacuum...232 psi)
Max. measurement distance

Rope: 12 m (40 ft)
Min DK >1.4
Main wetted parts

Rope probe:
304, 316, 316Ti, 316L, PEEK, PPS, PA

Prikaži sve specifikacije

Područje primjene

Levelflex FMP56 is particularly designed for light-duty process conditions as they occur in silos and storage tanks for solids. FMP56 guided radar offers maximum reliability even in case of dusty atmosphere in narrow silos or in vessels with obstacles. Levelflex FMP56 is used for continuous level measurement in powdery to granular bulk solids. Dust, filling noises, temperature layers and gas layers do not affect the measurement. Remote access with SmartBlue app via Bluetooth module is available.

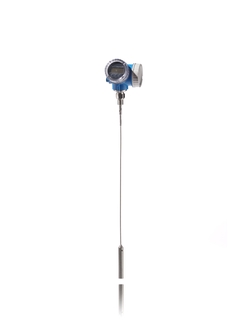

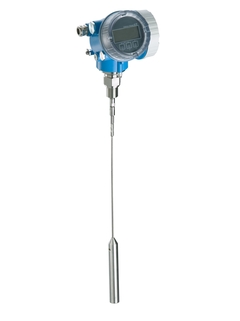

Version with rope probe.

Process connections: Thread or adapter flange
Temperature: -40 to +120°C (-40 to +248°F)
Pressure: -1 to +16bar (-14.5 to +232psi)
Maximum measuring range: 12m (39ft)
Accuracy: ± 2mm (0.08")
International explosion protection certificates, SIL, 5-point linearity protocol

Prednosti

Reliable measurement even for changing product and process conditions
HistoROM data management concept for fast and easy commissioning, maintenance and diagnostics
Highest reliability due to new Multi-Echo Tracking evaluation
Hardware and software developed according to IEC 61508 up to SIL3
Heartbeat Technology for a cost-effective and safe plant operation during the entire life cycle
Seamless integration into control or asset management systems and intuitive, menu-guided operation concept (on-site or via the control system)
World's easiest proof test for SIL and WHG saves time and costs

Videozapisi

Time-of-Flight measuring principle
Commissioning movie for Levelflex FMP5x guided radar and Micropilot FMR5x free space radar
Unique HistoROM data management concept for safe level measurement
Continuous adapting algorithms offering safe level measurement due to Multi-Echo Tracking
