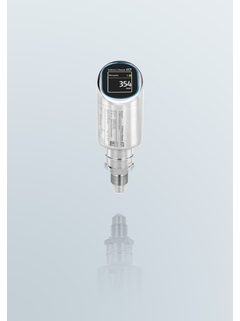

Micropilot FMR43 – product picture

Micropilot FMR43 – radar sensor for hygienic processes

High performance sensor, especially compact and the perfect fit for fast changing level applications

FMR43
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-

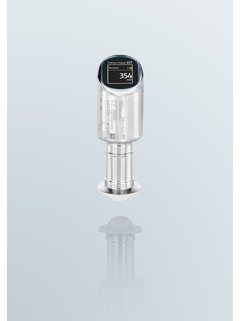

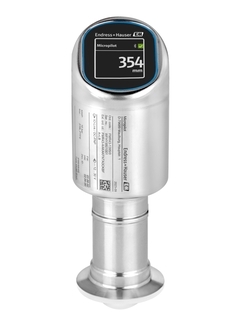

Micropilot FMR43, 316L housing, with display, clamp, 80 GHz PTFE
  • F
  • L
  • E
  • X
©Endress+Hauser

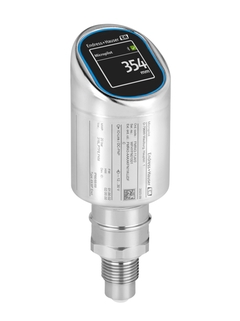

Micropilot FMR43, 316L housing, with display, thread, 180 GHz PTFE
  • F
  • L
  • E
  • X
©Endress+Hauser

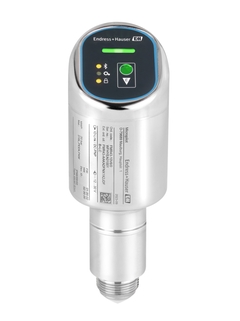

Micropilot FMR43, 316L housing, with LED, thread, 80 GHz PEEK
  • F
  • L
  • E
  • X
©Endress+Hauser
Micropilot FMR43, 316L housing, with display, thread, 180 GHz PTFE
  • F
  • L
  • E
  • X
©Endress+Hauser
Micropilot FMR43, 316L housing, with display, clamp, 80 GHz PTFE
  • F
  • L
  • E
  • X
©Endress+Hauser
Heartbeat Technology IO-Link digital communication technology

Kratke specifikacije

  • Accuracy

    +/-1 mm (0.04 in)

  • Process temperature

    -40 to +150 °C
    (-40 to +302 °F)

  • Process pressure / max. overpressure limit

    -1 to +20 bar
    (-14.5 to +290 psi)

  • Max. measurement distance

    15 m (49 ft)

  • Main wetted parts

    PEEK
    PTFE
    316L (for threaded connections)

Područje primjene

The Micropilot FMR43 is a free space radar sensor for continuous non-contact level measurement and part of the Compact Line. The product line is especially developed for hygienic applications and combines a compact design with full performance. The device ensures reliable measurement even under rapidly changing or turbulent process conditions. In addition to the proven 80 GHz technology, a 180 GHz frequency option ensures the use even in particularly small process tanks.

Micropilot FMR43 is for free space applications up to 15 m (49 ft) and offers an additional 180 GHz sensor option for small vessels.

The Micropilot FMR43 is suitable for a wide range of hygienic applications:

  • Mixing applications of viscous and low conductive media

  • Filling applications of viscous media

  • Storage of low conductive fluids

  • Level measurement in tanks with changing media density

Prednosti

  • Outstanding ease of use due to easy setup and operation with guided wizards

  • Improved process and product safety through configuration integrity - a checksum algorithm (CRC) ensures that safety relevant parameters remain unchanged

  • Increased productivity thanks to traceable and documented on-demand verification including the radar's accuracy without process interruption with Heartbeat Technology

  • Documented compliance through certified hygienic design as well as proven material conformity and traceability

  • Flexibility in scale - installation in tight space conditions thanks to compact sensor design and small process connections as well as use in large tanks and silos

Videozapisi

  • Performance meets hygienic industry requirements: The Compact Line

  • How-to-video: One-Button-Operation Micropilot FMR43

  • Heartbeat Technology
    Smart instrumentation through Heartbeat Technology

    You want to increase plant performance and reduce costs? Our smart instrumentation portfolio with Heartbeat Technology offers in-depth device insight for more cost-efficiency and operational safety.

  • IO-Link digital communication technology
    IO-Link communication

    IO-Link communication helps to digitalize your plant
