Name: Promag 51P
Brand: Endress+Hauser
Availability: InStock

Ovaj proizvod više nije dostupan.

Molimo provjerite novu generaciju pod predhodnim modelom / nasljednim modelom ili kontaktirajte svoj lokalni Endress+Hauser.

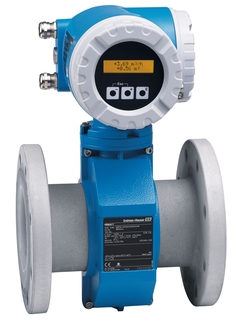

Electromagnetic flowmeter - Proline Promag 51P

Naslijedni model

F

L

E

X

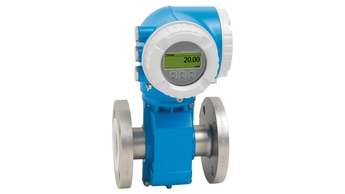

Proline Promag P 300 / 5P3B

High-temperature flowmeter for process applications with a compact, easily accessible transmitter
Više informacija

Učitavanje cijene

Cijene privremeno nisu dostupne

Cijena nakon prijave
F

L

E

X
Proline Promag P 500 / 5P5B

High-temperature flowmeter for process applications as remote version with up to 4 I/Os
Više informacija

Učitavanje cijene

Cijene privremeno nisu dostupne

Cijena nakon prijave

Jednostavni proizvodi
Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

Što je FLEX?

Standardni proizvodi
Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

Što je FLEX?

Vrhunski proizvodi
Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

Što je FLEX?

Specijalizirani proizvodi
Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

Što je FLEX?

FLEX odabir	Tehnička izvrsnost	Jednostavnost
F L E X Fundamental odabir Udovoljite svojim osnovnim potrebama u mjernju	Tehnička izvrsnost	Jednostavnost
F L E X Lean odabir Jednostavno upravljajte svojim osnovnim procesima	Tehnička izvrsnost	Jednostavnost
F L E X Extended odabir Optimizirajte svoje procese s inovativnim tehnologijama	Tehnička izvrsnost	Jednostavnost
F L E X Xpert odabir Ovladajte svojim najizazovnijim aplikacijama	Tehnička izvrsnost	Jednostavnost Promjenjivo

Saznajte više o FLEX odabiru

Mjerni princip

Electromagnetic
Product headline

The flowmeter for highest medium temperatures with a transmitter for custody transfer. Dedicated for chemical and process applications with corrosive liquids and high medium temperatures.
Sensor features

Versatile applications – wide variety of wetted materials. Energy‐saving flow measurement – no pressure loss due to cross‐section constriction. Maintenance‐free – no moving parts. Nominal diameter: max. DN 600 (24"). All common Ex approvals.
Transmitter features

Quality – designed for custody transfer; featuring worldwide recognized metrological approvals. Safe operation – display provides easy readable process information. Fully industry compliant – IEC/EN/NAMUR. Transmitter certified to MI‐001. Device in compact or remote version.
Nominal diameter range

DN 15...600
1/2"...24"
Max. measurement error

±0.5%
±0.2% (optional)
Measuring range

0...9'600 m3/h
Max. process pressure

PN10...40
Medium temperature range

-40...+150°C
(-40...+302°F)
Ambient temperature range

-20...+60°C
-40...+60°C (optional)
Degree of protection

IP 67 (NEMA 4x)
IP 68 (Nema 6P)
Display/Operation

Two line display with backlit
Push button
Outputs

4...20 mA
Pulse/Frequency
Status
Inputs

Status
Digital communication

HART
Hazardous area approvals

ATEX
Product safety

CE, C-tick, EAC marking
Metrological approvals and certificates

Calibration performed on accredited calibration facilities (acc. to ISO/IEC 17025)
Custody transfer approvals: MI-001, PTB

Poštujemo vašu privatnost

Upotrebljavamo kolačiće kako bismo poboljšali vaše iskustvo pretraživanja, prikupljali statističke podatke za optimizaciju funkcionalnosti internetske stranice i omogućili personalizirane oglase ili sadržaj.

Odabirom opcije "Prihvati sve" pristajete na našu upotrebu kolačića.
Za više informacija pročitajte našu Politiku o kolačićima .

	EN	HR
01/07/2005
15/10/2003

Jezik:	English
Verzije:	01/07/2005
Veličina datoteke:	489.7 KB
Naziv datoteke:	TI058DEN.pdf

	EN	HR
30/10/2010
01/07/2009

Jezik:	English
Verzije:	30/10/2010
Veličina datoteke:	2.4 MB
Naziv datoteke:	BA00137DEN_0310.pdf

	EN	HR
01/03/2005
15/10/2003
01/04/2002

	EN	HR
01/07/2009
01/09/2007

	EN	HR
15/11/2018
18/11/2011

	EN	HR
15/10/2024
01/10/2018
28/06/2012

	EN	HR
01/03/2018
28/11/2013
25/04/2013

Promag 51P

Naslijedni model

Proline Promag P 300 / 5P3B

Proline Promag P 500 / 5P5B

Mjerni princip

Product headline

Sensor features

Transmitter features

Nominal diameter range

Max. measurement error

Measuring range

Max. process pressure

Medium temperature range

Ambient temperature range

Degree of protection

Display/Operation

Outputs

Inputs

Digital communication

Hazardous area approvals

Product safety

Metrological approvals and certificates

Back

Proline Promag 51P, 51W Technical Information

Proline Promag 51 HART Operating Instructions

Proline Promag 51 HART Operating Instructions

Proline Promag 51 HART Description of Device Functions

Proline Promag 51 Brief Operating Instructions

Replacing Power supply and display Installation Instructions

EA Replacing cover and O-ring

Safety Instructions for Spare Parts Installation Instructions

Replacing S-DAT Installation Instructions

Replacing transmitter parts Installation Instructions

Back

Kit P.s.b. 50/51/53 85-260VAC

Kit P.s.b. 50/51/53 85-260VAC Ex

Kit P.s.b. 50/51/53 20-55VAC 16-62VDC

Kit P.s.b. 50/51/53 20-55VAC16-62VDC Ex

Kit 10 fuses 250 VAC T800 MA

Kit 10 fuses 250 VAC T 2A00

Kit com50/51/40/80/90 I+F/stat.in+outEx

Kit meas. amplifier PMAG 51 WEA

Kit meas. amplifier PMAG 51 EES

Kit meas. amplifier PMAG 51 SEA

Kit display mod 50/51/80/65 >=V1.06.00

Kit disp.50/51/80/90/65 Wall >=V1.06.00

Kit Bus/connec.b.5X/40/8X/65 field hous.

Kit Bus PCB/PCB carr.5X/8X/9X/65 wall

Kit connec. board In/Output Wall encl

Kit connec. board PMAG5X wall enclo.

Kit connection board D/E/L/P/S/W FS

Kit Termin.Block field hous. 5X/8X/40/65

Kit Termin.Block Wall encl. 5X/8X/9X/65

Kit S-Dat Promag 51 programmed

Kit Cover 5X/40/8X/65 with window

Kit Cover 5X/40/8X/93/65 with window Exd

Kit Cover 5X/40/8X/93/65 Conn.termi.Exe

Kit Cover 5X/40/8X/93/65 Conn.termi.Exd

Kit Cover Connection terminal

Kit Cover Connection terminal

Repair kit cover, remote version

Kit 10 cable glands M20x1,5

Kit 10 cable glands M20x1.5 Ex

Kit 10 cable glands M20x1.5 Ex

Kit 10 extension M20x1.5/PG13,5

Kit Circuit board cpl field/SS-housing

Kit Ground terminal / Cover clamp

Kit Seal cover to Wall enclosure

Kit 10 Seal cover to field housing

Kit Bushing to field/SS-housing

Kit parts housing FS Stnd/HT

Kit parts housing compact Stnd/HT

Kit housing gasket FS Stnd/HT

Kit housing gasket compact Stnd/HT

Kit Screw sealing PMAG 51

Kit 50 lead seals

Promag, cable remote version

Transmitter Promag, mounting set

Promag L/W/P/S,E, grounding cable kit

Promag, grounding disc/protection disc
