Hygienic flowmeter with highest repeatability and fully-welded transmitter for filling and dosing

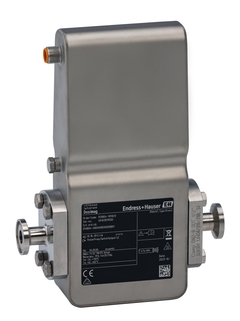

Dosimag electromagnetic flowmeter

Flowmeter with hygienic design, highest repeatability, and compact, fully-welded housing

D5AB
Učitavanje cijene
Cijene privremeno nisu dostupne
from CHF ??.-

Ovaj proizvod nije dostupan na ovom tržištu.

*Please contact your Endress+Hauser sales partner for any further questions.

Dosimag for filling and dosing applications
  • F
  • L
  • E
  • X
©Endress+Hauser

Dosimag for filling and dosing applications in Food & Beverage and Life Sciences

Dosimag for filling and dosing applications in Food & Beverage and Life Sciences

IO-Link digital communication technology

Kratke specifikacije

  • Max. measurement error

    ±0.25 % o.r. ± 1 to 4 m/s (3.3 to 13 ft/s)

  • Measuring range

    0.14 to 1.66 l/s (0.035 to 0.44 gal/s)

  • Medium temperature range

    Seal material EPDM: –20 to +130 °C (–4 to +266 °F)
    Seal material Silicone: –20 to +130 °C (–4 to +266 °F)
    Seal material Viton: 0 to +150 °C (+32 to +302 °F)

  • Max. process pressure

    PN 16

  • Wetted materials

    Liner: PFA
    Electrodes: 1.4435 (316L); Alloy C22, 2.4602 (UNS N06022), Tantalum,
    Platinum

Područje primjene

Dosimag is designed for demanding filling and bottling applications with conductive liquids in Food & Beverage and Life Sciences. In applications where space is limited, Dosimag is the preferred choice for system integrators, skid builders and equipment manufacturers. Dosimag measures volume directly. The bidirectional measuring principle is virtually independent of pressure, density, temperature and viscosity.

The compact and robust sensor is available with three electronics versions:

  • Pulse/frequency/status version for easy and economical use in filling applications

  • Intelligent pulse version with IO-Link provides continuous digital communication, allowing easy commissioning and documentation, real-time availability of process data, optimization of filling conditions and predictive maintenance

  • Integrated batching version with Dynamic Drip Correction over Modbus RTU for advanced filling control

Prednosti

  • High and stable filling performance – high measuring accuracy and repeatability in shortest filling times

  • IO-Link allows real-time digital communication for easier commissioning and continuous data availability

  • Compact design for optimized machine footprint

  • Integrated batching functionality – filling process management solved by the flowmeter

  • Automatic recovery of data for servicing

  • Global compliance with industry standards – EHEDG, 3-A, FCM, cGMP

  • SIP and CIP cleanable

Videozapisi

  • The Electromagnetic Flow Measuring Principle

  • IO-Link digital communication technology
    IO-Link communication

    IO-Link communication helps to digitalize your plant

Xpert odabir

  • Specijalizirani proizvodi

  • Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

Xpert: Master your most challenging applications ©Endress+Hauser

  • Jednostavni proizvodi

  • Jednostavno je odabrati, instalirati i rukovati

Tehnička izvrsnost

Jednostavnost

  • Standardni proizvodi

  • Pouzdano, robustno i s malo održavanja

Tehnička izvrsnost

Jednostavnost

  • Vrhunski proizvodi

  • Izuzetno funkcionalno i prikladno

Tehnička izvrsnost

Jednostavnost

  • Specijalizirani proizvodi

  • Dizajnirano za zahtjevne aplikacije

Tehnička izvrsnost

Jednostavnost

Promjenjivo

FLEX odabir Tehnička izvrsnost Jednostavnost
  • F
  • L
  • E
  • X

Fundamental odabir

Udovoljite svojim osnovnim potrebama u mjernju

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Lean odabir

Jednostavno upravljajte svojim osnovnim procesima

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Extended odabir

Optimizirajte svoje procese s inovativnim tehnologijama

Tehnička izvrsnost
Jednostavnost
  • F
  • L
  • E
  • X

Xpert odabir

Ovladajte svojim najizazovnijim aplikacijama

Tehnička izvrsnost
Jednostavnost

Promjenjivo
Loading alternative products

Prethodnik

Uspješne priče

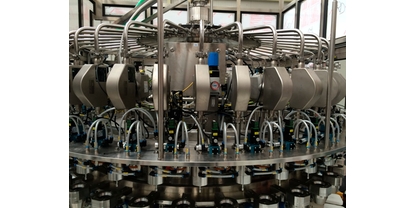

  • RONCHI MARIO S.p.A., filler with Endress+Hauser Dosimass flowmeter RONCHI MARIO S.p.A., filler with Endress+Hauser Dosimass flowmeter

    Smarter flowmeters for filling applications

    Smarter flowmeters for filling applications: RONCHI MARIO have developed its new filler around the new generation of Endress+Hauser's Dosimag and Dosimass, with integrated batching functionality.

  • Wastewater sampling in a shaft Wastewater sampling in a shaft

    Wastewater measurement that works

    Check out how Hofbrauhaus Freising samples wastewater with Promag L 400 in a nearly inaccessible shaft.

  • Teqwave H monitors sugar concentration directly in the filling process Teqwave H monitors sugar concentration directly in the filling process

    Continuous Brix measurement of soft drinks

    Monitoring of the sugar/invert sugar content in the soft drink filling process with the concentration meter Teqwave H.

  • The Waldbrand distillery The Waldbrand distillery

    Simplified quality control in distilleries

    Waldbrand Destillerie uses Teqwave to continuously measure the alcohol concentration. The device can compensate for cross-influences and can be adapted to beverage-specific properties

  • Ketchup is a fluid with complex characteristics due to its components Ketchup is a fluid with complex characteristics due to its components

    Inline monitoring of ketchup quality and teamwork pays off

    Thanks to inline viscosity measurement, a ketchup producer can continuously control the quality during production, save time waiting for lab results and avoid product losses and reduce unplanned costs

Također vas može interesirati

  • Precise filling and dosing with excellent measuring stability, cGMP compliance and IO-Link Precise filling and dosing with excellent measuring stability, cGMP compliance and IO-Link

    Not a drop to lose

    Dosimag and Dosimass – precise filling and dosing with excellent measuring stability, cGMP compliance and IO-Link
