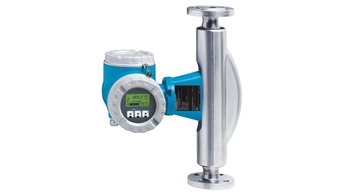

Maseno mjerilo protoka, na principu Coriolisovih sila. Aplikacija: Sustavi za naplatu.
Naslijedni model
Flowmeter with premium accuracy, robustness and custody transfer functionality. Highest measurement performance for liquids and gases under varying, demanding process conditions.
Više informacija
Jednostavni proizvodi
Jednostavno je odabrati, instalirati i rukovati
Tehnička izvrsnost
Jednostavnost
Standardni proizvodi
Pouzdano, robustno i s malo održavanja
Tehnička izvrsnost
Jednostavnost
Vrhunski proizvodi
Izuzetno funkcionalno i prikladno
Tehnička izvrsnost
Jednostavnost
Tehnička izvrsnost
Jednostavnost
FLEX odabir
Tehnička izvrsnost
Jednostavnost
Fundamental odabir
Udovoljite svojim osnovnim potrebama u mjernju
Tehnička izvrsnost
Jednostavnost
Lean odabir
Jednostavno upravljajte svojim osnovnim procesima
Tehnička izvrsnost
Jednostavnost
Extended odabir
Optimizirajte svoje procese s inovativnim tehnologijama
Tehnička izvrsnost
Jednostavnost
Xpert odabir
Ovladajte svojim najizazovnijim aplikacijama
Tehnička izvrsnost
Jednostavnost
Characteristic / Application
Coriolis massflow meter for custody transfer application.
Process temperature
-50...+150°C (-58...+302°F)
Process pressure
PN 16...100 PN350 (MP) Cl 150...600 JIS 10...63K
Output
4...20mA Pulse/Frequency (10KHz, 90° phase shifted, active/passive
Product headline
Coriolis massflow meter for custody transfer application.
Sensor features
S-DAT, T-DAT Validation Quick-Set-up 3 Totalizer Pulsating flow
Nominal diameter range
DN 8...25(MP) 5/16"...3" 5/16"...1"(MP)
Max. measurement error
Mass flow:+-0.1% Volume flow: +-0.25%
Measuring range
0...180'000 kg/h 0...18'000 kg/h (MP)
Max. process pressure
PN 16...100 PN350 (MP) Cl 150...600 JIS 10...63K
Medium temperature range
-50...+150°C (-58...+302°F)
Display/Operation
Four line backlit Touch control
Outputs
4...20mA Pulse/Frequency (10KHz, 90° phase shifted, active/passive
Product headline
Coriolis massflow meter for custody transfer application.
Sensor features
S-DAT, T-DAT Validation Quick-Set-up 3 Totalizer Pulsating flow
Nominal diameter range
DN 8...80 DN 8...25(MP) 5/16"...3" 5/16"...1"(MP)
Measuring range
0...180'000 kg/h 0...18'000 kg/h (MP)
Max. process pressure
PN 16...100 PN350 (MP) Cl 150...600 JIS 10...63K
Medium temperature range
-50...+150°C (-58...+302°F)
Display/Operation
Four line backlit Touch control
Outputs
4...20mA Pulse/Frequency (10KHz, 90° phase shifted active/passive
56 dokumenti
The universal and multivariable flowmeter for liquids and gases for custody transfer
EN
HR
German French Italian
Odaberite drugi jezik
25/01/2010
01/11/2009
Jezik:
English
Verzije:
25/01/2010
Veličina datoteke:
2.1 MB
Naziv datoteke:
TI104DEN_0210.pdf
Proline Promass 84F, 84M
Technical Information (SI units)
The universal and multivariable flowmeter for liquids and gases for custody transfer
EN
HR
German French Italian Polish
Odaberite drugi jezik
01/07/2008
01/09/2007
01/12/2006
01/03/2005
Jezik:
English
Verzije:
01/07/2008
Veličina datoteke:
2.7 MB
Naziv datoteke:
TI067DEN_0708.pdf
Proline Promass 84
HART
Description of Device
Functions
Coriolis Mass Flow Measuring System for Custody Transfer. Additional documentation for Operating Instructions Promass 84.
EN
HR
Czech German French Italian Polish Russian
Odaberite drugi jezik
01/09/2008
01/12/2006
01/03/2005
Jezik:
English
Verzije:
01/09/2008
Veličina datoteke:
1.4 MB
Naziv datoteke:
BA110DEN_0908.pdf
Proline Promass 84
Modbus RS485
Operating Instructions
Coriolis Mass Flow Measuring System for Custody Transfer. The description of the device functions are in a separate documentation.
EN
HR
Bulgarian German Italian Russian
Odaberite drugi jezik
15/10/2012
31/12/2011
08/06/2010
01/11/2008
01/12/2006
Jezik:
English
Verzije:
15/10/2012
Veličina datoteke:
2.4 MB
Naziv datoteke:
BA00129DEN_1412.pdf
Proline Promass 84
HART
Operating Instructions
Coriolis Mass Flow Measuring System for Custody Transfer. The description of the device functions are in a separate documentation.
EN
HR
Bulgarian German French Italian Polish Russian
Odaberite drugi jezik
15/10/2012
31/12/2011
01/11/2008
01/12/2006
01/03/2005
Jezik:
English
Verzije:
15/10/2012
Veličina datoteke:
2.2 MB
Naziv datoteke:
BA00109DEN_1412.pdf
Proline Promass 84
MODBUS RS485
Description of
Device Functions
Coriolis Mass Flow Measuring System for Custody Transfer. Additional documentation for Operating Instructions Promass 84.
EN
HR
German Italian
Odaberite drugi jezik
01/11/2008
01/12/2006
Jezik:
English
Verzije:
01/11/2008
Veličina datoteke:
1.5 MB
Naziv datoteke:
BA130DEN_1108.pdf
Proline Promass 84
Brief Operating Instructions
Coriolis Mass Flow Measuring System
EN
HR
Czech German Spanish Estonian French Italian Chinese
Odaberite drugi jezik
15/10/2012
31/12/2011
01/07/2007
Jezik:
English
Verzije:
15/10/2012
Veličina datoteke:
671.5 KB
Naziv datoteke:
KA00025DEN_1412.pdf
Replacing connecting cable
Installation Instructions
Promass 60, 63, 64, 80, 83, 84
EN
HR
German
Odaberite drugi jezik
01/10/2018
01/12/2009
Jezik:
English
Verzije:
01/10/2018
Veličina datoteke:
293.1 KB
Naziv datoteke:
EA00081DA2_1218.pdf
Replacing interface parts
Installation Instructions
Promass 40, 80, 83, 84, Cubemass 8CN, CNGmass 8DF
EN
HR
German
Odaberite drugi jezik
01/04/2019
17/11/2011
Jezik:
English
Verzije:
01/04/2019
Veličina datoteke:
787.5 KB
Naziv datoteke:
EA00036DA2_1519.pdf
Replacing Power supply and display
Installation Instructions
Promag 50, 51, 53, 55, Promass 40, 80, 83, 84, 8ME, Cubemass DCI 8CN, CNGmass DCI 8DF, Prosonic Flow 90, 93, t-mass 65
EN
HR
German
Odaberite drugi jezik
15/11/2018
18/11/2011
Jezik:
English
Verzije:
15/11/2018
Veličina datoteke:
455.1 KB
Naziv datoteke:
EA00063DA2_1518.pdf
Pretražite rezervne dijelove prema broju na crtežu
95 rezervni dijelovi & pribor
95 rezervni dijelovi
95 pribor
Kit power s.b. 40/8X/65 220V REx000
Broj crteža
Narudžbeni kod
F
50098557
Kit p.s.b.40/8X 220V REx000 HE
Broj crteža
Narudžbeni kod
F
71039431
Kit p.s.b.40/8X 220V REx000 HE
Broj crteža
Narudžbeni kod
F
71039431
Kit power s.b. 40/8X/65 220V REx120 Ex
Broj crteža
Narudžbeni kod
F
50098558
Kit p.s.b.8X 220V REx120 HE Ex
Broj crteža
Narudžbeni kod
F
71039432
Kit p.s.b. 40/8X 220V REx330 Ex
Broj crteža
Narudžbeni kod
F
71097758
Kit p.s.b.8X 220V REx330 HE Ex
Broj crteža
Narudžbeni kod
F
71097760
Kit P.s.b. 40/8X/65 24V REx000
Broj crteža
Narudžbeni kod
F
50098565
Kit p.s.b.8X 24V REx000 HE
Broj crteža
Narudžbeni kod
F
71039434
Kit P.s.b. 40/8X/65 24V REx120 Ex
Broj crteža
Narudžbeni kod
F
50098566
Kit P.s.b. 8X 24V REx120 HE Ex
Broj crteža
Narudžbeni kod
F
71039436
Kit P.s.b. 40/8X 24V REx330 Ex
Broj crteža
Narudžbeni kod
F
71097759
Kit P.s.b. 8X 24V REx330 HE Ex
Broj crteža
Narudžbeni kod
F
71097761
Kit 10 fuses 250 VAC T800 MA
Broj crteža
Narudžbeni kod
7
50094002
Kit 10 fuses 250 VAC T 2A00
Broj crteža
Narudžbeni kod
7
50094003
Kit meas. amplifier Pmass 84 CN EX
Broj crteža
Narudžbeni kod
B
50108694
Kit meas. amplifier 84 CN HE EX
Broj crteža
Narudžbeni kod
B
71039416
Kit meas. amplifier Pmass 84 WEA EX
Broj crteža
Narudžbeni kod
B
50108695
Kit meas. amplifier 84 WEA HE EX
Broj crteža
Narudžbeni kod
B
71039413
Kit meas. amplifier Pmass 84 EES EX
Broj crteža
Narudžbeni kod
B
50108696
Kit meas. amplifier 84 EES HE EX
Broj crteža
Narudžbeni kod
B
71039414
Kit meas. amplifier Pmass 84 SEA EX
Broj crteža
Narudžbeni kod
B
50108697
Kit meas. amplifier 84 SEA HE EX
Broj crteža
Narudžbeni kod
B
71039415
Kit commodul Iout passive/Frequency Exi
Broj crteža
Narudžbeni kod
C
50098302
Kit I/O Iout passive/Frequency HE Exi
Broj crteža
Narudžbeni kod
C
71039479
Kit commodul Iout active/Frequency Exi
Broj crteža
Narudžbeni kod
C
50098303
Kit I/O Iout active/Frequency HE Exi
Broj crteža
Narudžbeni kod
C
71039478
Kit Com ModbusRS485+stat.In 2Interf.Ex
Broj crteža
Narudžbeni kod
D
71021743
Kit I/O Modb.RS485+Stat.In 2Interf.HE EX
Broj crteža
Narudžbeni kod
D
71039485
Kit Commodul current out 3 Interface Ex
Broj crteža
Narudžbeni kod
D
50096833
Kit I/O current out 3 Interface HE EX
Broj crteža
Narudžbeni kod
D
71039477
Broj crteža
Narudžbeni kod
2
50096834
Kit Sub PCB current out HE
Broj crteža
Narudžbeni kod
2
71039487
Broj crteža
Narudžbeni kod
5
50096836
Broj crteža
Narudžbeni kod
5
50096836
Broj crteža
Narudžbeni kod
5
71039491
Broj crteža
Narudžbeni kod
5
71039491
Broj crteža
Narudžbeni kod
4
50096837
Kit Sub PCB Status input HE
Broj crteža
Narudžbeni kod
4
71039492
Kit Sub PCB 84/8CN/8DF frequency out
Broj crteža
Narudžbeni kod
31
50108692
Kit Sub PCB 84/8CN/8DF frequency out
Broj crteža
Narudžbeni kod
31
50108692
Kit Sub PCB 84/8CN/8DF frequency out HE
Broj crteža
Narudžbeni kod
31
71039490
Kit Sub PCB 84/8CN/8DF frequency out HE
Broj crteža
Narudžbeni kod
31
71039490
Kit display modul Wall enclosure
Broj crteža
Narudžbeni kod
J
50096755
Broj crteža
Narudžbeni kod
E
50096754
Kit Bus/connec.b.5X/40/8X/65 field hous.
Broj crteža
Narudžbeni kod
G
50094016
Kit Bus PCB/PCB carr.5X/8X/9X/65 wall
Broj crteža
Narudžbeni kod
21
50094017
Kit Bus/connec.b.5X/8X SS-housing
Broj crteža
Narudžbeni kod
H
50099099
Kit connec. board In/Output Wall encl
Broj crteža
Narudžbeni kod
18
50094014
Kit connec. board PMASS8X wall enclo
Broj crteža
Narudžbeni kod
19
50098637
Kit connec. board 8X wall enclosur HE
Broj crteža
Narudžbeni kod
19
71039493
Kit connection board 8X FS
Broj crteža
Narudžbeni kod
A
50098705
Kit connection board 8X FS HE
Broj crteža
Narudžbeni kod
A
71039494
Kit connection board 8X FS Ex
Broj crteža
Narudžbeni kod
A
50098706
Kit connection board 8X FS HE EX
Broj crteža
Narudžbeni kod
A
71039495
Kit Termin.Block field hous. 5X/8X/40/65
Broj crteža
Narudžbeni kod
29
50108139
Kit Termin.Block Wall encl. 5X/8X/9X/65
Broj crteža
Narudžbeni kod
30
50108140
Kit T-DAT Transmitter Data Chip
Broj crteža
Narudžbeni kod
1
50094004
Kit S-Dat Promass 84/8CN/8DF programmed
Broj crteža
Narudžbeni kod
S
71003953
Kit Cover 5X/40/8X/65 with window
Broj crteža
Narudžbeni kod
8
50094026
Kit Cover 5X/40/8X/93/65 with window Exd
Broj crteža
Narudžbeni kod
32
50094027
Kit Cover 5X/40/8X/65 version blind
Broj crteža
Narudžbeni kod
9
50094028
Kit Cover 5X/40/8X/93/65 vers. blind Exd
Broj crteža
Narudžbeni kod
33
50094029
Kit Cover Connection terminal
Broj crteža
Narudžbeni kod
10
50094038
Kit Cover Connection terminal
Broj crteža
Narudžbeni kod
10
50094038
Kit Cover 5X/40/8X/93/65 Conn.termi.Exe
Broj crteža
Narudžbeni kod
34
50094039
Kit Cover 5X/40/8X/93/65 Conn.termi.Exd
Broj crteža
Narudžbeni kod
35
50094040
Kit Cover 5X/8X with window SS-housing
Broj crteža
Narudžbeni kod
17
50099100
Kit 10 cable glands M20x1,5
Broj crteža
Narudžbeni kod
15
50096840
Kit 10 cable glands M20x1.5 Ex
Broj crteža
Narudžbeni kod
15
50098036
Kit 10 cable glands M20x1.5 Ex
Broj crteža
Narudžbeni kod
15
50098036
Kit 10 cable glands M20x1.5 Ex
Broj crteža
Narudžbeni kod
15
50098036
Kit 10 ext. M20x1.5/G 1/2" (plug PVC)
Broj crteža
Narudžbeni kod
15
50098041
Kit 10 ext. M20x1.5/G 1/2" (plug PVC)
Broj crteža
Narudžbeni kod
15
50098041
Kit 10 ext. M20x1.5/NPT 1/2" (plug PVC)
Broj crteža
Narudžbeni kod
15
50098042
Kit 10 ext. M20x1.5/NPT 1/2" (plug PVC)
Broj crteža
Narudžbeni kod
15
50098042
Kit 10 ext. M20x1.5/NPT 1/2" (plug PVC)
Broj crteža
Narudžbeni kod
15
50098042
Kit Circuit board cpl field/SS-housing
Broj crteža
Narudžbeni kod
12
50096839
Kit Bushing to field/SS-housing
Broj crteža
Narudžbeni kod
14
50099102
Kit Terminal protective Cover Ex
Broj crteža
Narudžbeni kod
36
71008445
Kit Ground terminal / Cover clamp
Broj crteža
Narudžbeni kod
13
50096841
Kit 2 Screening sheet wall enclo.
Kit 2 Screening sheet field housing
Kit Seal cover to Wall enclosure
Broj crteža
Narudžbeni kod
20
50094041
Kit 10 Seal cover to field housing
Broj crteža
Narudžbeni kod
11
50094050
Kit housing gaskets SS-Field housing
Broj crteža
Narudžbeni kod
16
50099101
Kit Part 8X Stainless housing comp.
Broj crteža
Narudžbeni kod
23
50098701
Kit Part 8X fieldhousing compact
Broj crteža
Narudžbeni kod
22
50098702
Broj crteža
Narudžbeni kod
24
50098704
Kit cable Promass remote version 10m
Broj crteža
Narudžbeni kod
28
50093554
Kit cable Promass remote version 20m
Broj crteža
Narudžbeni kod
28
50093573
Kit cable PROMASS remote version 10m Ex
Broj crteža
Narudžbeni kod
28
50098567
Kit cable PROMASS remote version 20m Ex
Broj crteža
Narudžbeni kod
28
50098568
Kit Screw sealing 84/8DF/8FE/8FF
Poštujemo vašu privatnost
Upotrebljavamo kolačiće kako bismo poboljšali vaše iskustvo pretraživanja, prikupljali statističke podatke za optimizaciju funkcionalnosti internetske stranice i omogućili personalizirane oglase ili sadržaj.
Odabirom opcije "Prihvati sve" pristajete na našu upotrebu kolačića.
Za više informacija pročitajte našu Politiku o kolačićima .
Prilagodi
Prihvati samo osnovnih
Prihvati sve
